Name: 1725698
Brand: Phoenix Contact
SKU: 1725698
Price: 5.27000 USD
Availability: InStock

new-10%

1725698

Manufacturer part number:1725698

Manufacturer:Phoenix Contact

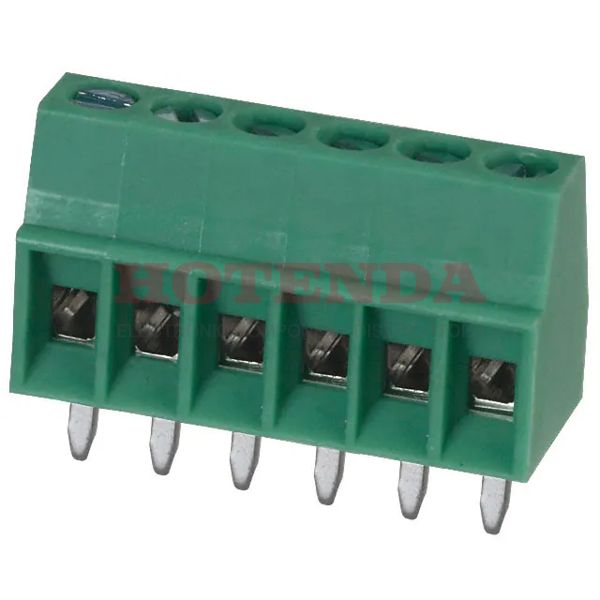

Description:0.100 2.54mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 20-30 AWG COMBICON MPT

Case Package:SOT-23

Datasheet:1725698 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	1.789989g
Packaging	Bulk
Series	COMBICON MPT
Published	2001
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	PCB, Screw, Terminal Block
Max Operating Temperature	100°C
Min Operating Temperature	-20°C
Color	Green
Number of Rows	1
Voltage - Rated	125V
Additional Feature	PA, UL 94V-0
Pitch	0.100 2.54mm
Orientation	Straight
Depth	6.2mm
Current Rating	6A
Voltage - Rated AC	63V
Approval Agency	CSA, UL, cULus
Lead Pitch	2.54mm
Number of Contacts	6
Wire Gauge	20-30 AWG
Max Supply Voltage	63V
Max Current Rating	6A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Wire/Cable Gauge	20 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.12-0.15 Nm (1.0-1.3 Lb-In)
Number of Ways	6
Safety Approval	CSA; CUL; EAC; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M1.6
Stripping Length	4.5mm
Wire Cross Section	0.5 mm2
Test Voltage	1.5kV
Height	15.7mm
Length	6.2mm
Width	16mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1725698 Product Details

1725698 Overview

This product is packaged in a PCB, Screw, Terminal Block cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.COMBICON MPT Series product.There are also features like PA, UL 94V-0, just to name a few.The best time to use this device is when the temperature is below 100°C.It has to be at least -20°C degrees to work.Through Hole is mounting the part.Ensure that this chip's supply voltage does not exceed 63V volts.
