Name: 1715734
Brand: Phoenix Contact
SKU: 1715734
Price: 2.17000 USD
Availability: InStock

new-10%

1715734

Manufacturer part number:1715734

Manufacturer:Phoenix Contact

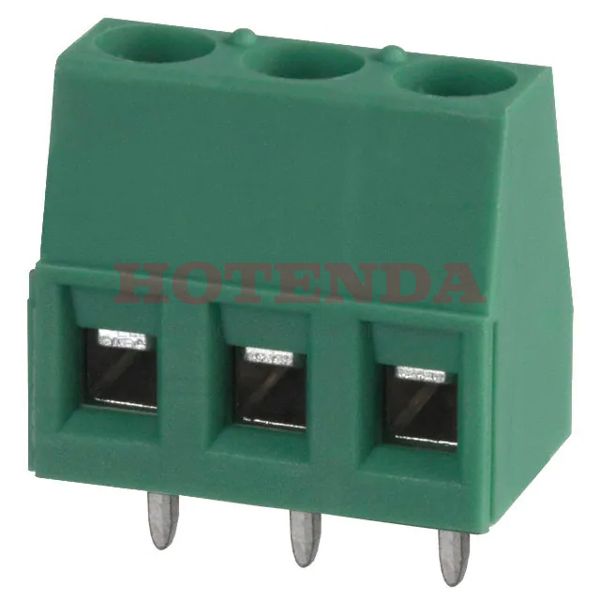

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1715734 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	4.050013g
Packaging	Bulk
Series	COMBICON MKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	9.8mm
Current Rating	22A
Voltage - Rated AC	250V
Approval Agency	CSA, UL, cULus
Lead Pitch	5.08mm
Number of Contacts	3
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	22A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	CCA; CSA; CUL; GOST; SEV; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	17.3mm
Length	9.8mm
Width	17.78mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1715734 Product Details

1715734 Overview

Currently, it is packaged in Screw.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the COMBICON MKDS Series, it is one of the most popular.There are also other features, like PA, 94V-0, to name a few.A number of benefits can be derived from the Interlocking (Side) feature of this application.Through Hole is the mounting point for the part.This chip shouldn't have a supply voltage over 250V.
