Name: 1713040
Brand: Phoenix Contact
SKU: 1713040
Price: 5.08000 USD
Availability: InStock

new-10%

1713040

Manufacturer part number:1713040

Manufacturer:Phoenix Contact

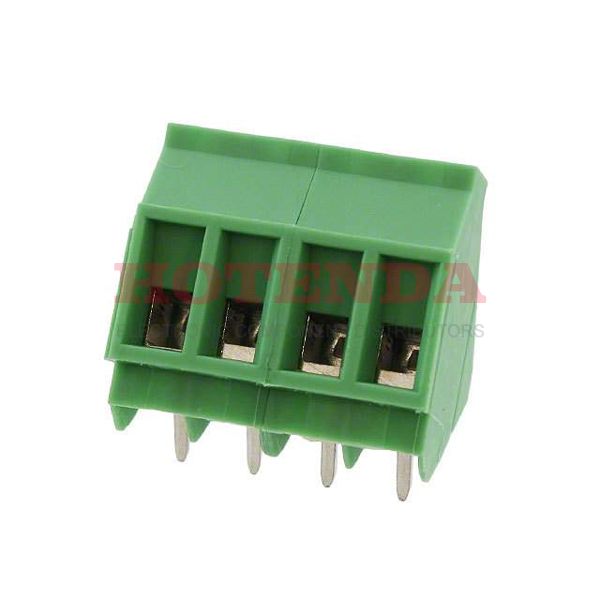

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON SMKDS

Case Package:SOT-23

Datasheet:1713040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	7.927009g
Packaging	Bulk
Series	COMBICON SMKDS
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.200 5.08mm
Depth	16mm
Current Rating	24A
Wire Gauge	12-30 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	28A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Mating Orientation	35° (145°) Angle with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	4
Wire Cross Section	2.5 mm2
Height	18mm
Length	20.32mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1713040 Product Details

1713040 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON SMKDS Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
