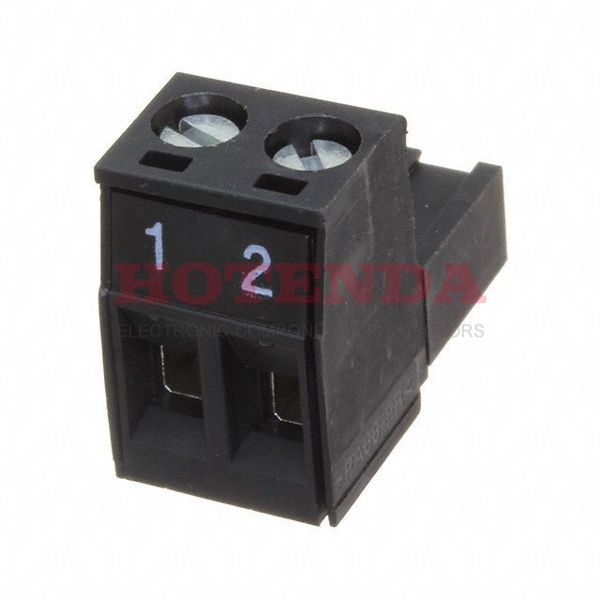

Name: 1710146
Brand: Phoenix Contact
SKU: 1710146
Price: 2.13000 USD
Availability: InStock

new-10%

1710146

Manufacturer part number:1710146

Manufacturer:Phoenix Contact

Description:1710146 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1710146 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Published	2014
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	250V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	2
Screw Size	M3
RoHS Status	RoHS Compliant

1710146 Product Details

1710146 Overview

This device has a Free Hanging (In-Line) mounting type.Packaging for the product is carried out via a Bulk case.Specifically, it is one of the products in the COMBICON MSTB Series.Its Positions Stamped, Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Free Hanging is mounting the part.Many Plug, Female Sockets products share the same benefits as this part.
