Name: 1709025
Brand: Phoenix Contact
SKU: 1709025
Price: 3.52000 USD
Availability: InStock

new-10%

1709025

Manufacturer part number:1709025

Manufacturer:Phoenix Contact

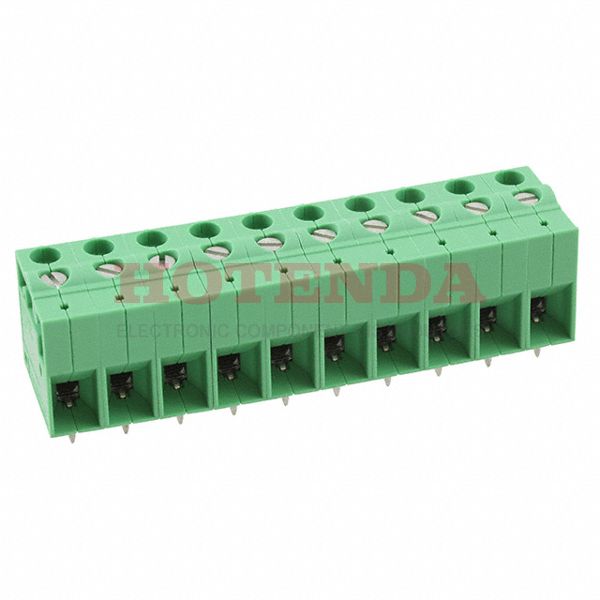

Description:7.5mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 12-24 AWG COMBICON GKDS

Case Package:SOT-23

Datasheet:1709025 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.540006g
Packaging	Bulk
Series	COMBICON GKDS
Published	2014
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	630V
HTS Code	8536.90.40.00
Pitch	7.5mm
Orientation	Straight
Current Rating	24A
Number of Contacts	1
Wire Gauge	12-24 AWG
Max Current Rating	24A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	1
Safety Approval	UL; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Height	19.5mm
Length	19mm
Width	7.5mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1709025 Product Details

1709025 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON GKDS Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
