Name: 1708136
Brand: Phoenix Contact
SKU: 1708136
Price: 25.09000 USD
Availability: InStock

new

1708136

Manufacturer part number:1708136

Manufacturer:Phoenix Contact

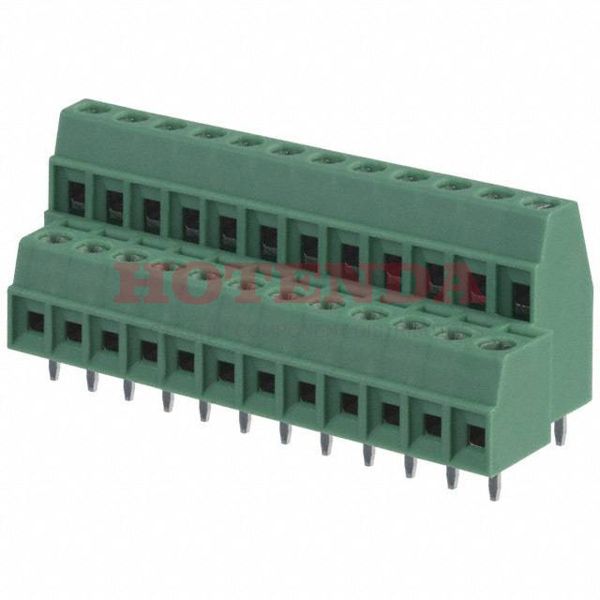

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 16-30 AWG COMBICON MKKDS

Case Package:SOT-23

Datasheet:1708136 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Series	COMBICON MKKDS
Published	2008
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Number of Positions	12
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	200V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	16.3mm
Current Rating	8A
Approval Agency	CB, CSA, UL
Number of Contacts	24
Wire Gauge	16-30 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	10A
Number of Levels	2
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level	12
Number of Ways	12
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Stripping Length	5mm
Height	16.2mm
Length	47.67mm
Width	47.62mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1708136 Product Details

1708136 Overview

The product comes in a package of Screw.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MKKDS Series.Among other features are PA, 94V-0, to name only a few.It is mounted by Through Hole.This chip should not be operated above 160V volts.
