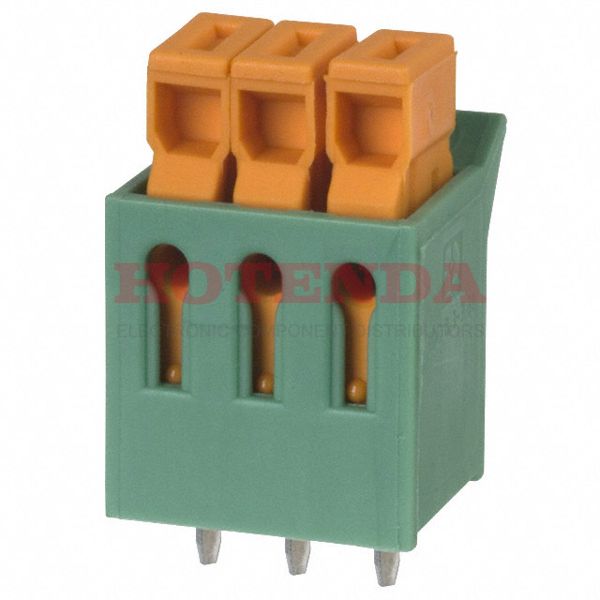

Name: 1706183
Brand: Phoenix Contact
SKU: 1706183
Price: 2.29000 USD
Availability: InStock

new-10%

1706183

Manufacturer part number:1706183

Manufacturer:Phoenix Contact

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - IDC 1 Levels 22-28 AWG COMBICON IDC

Case Package:SOT-23

Datasheet:1706183 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	70.999992g
Packaging	Bulk
Series	COMBICON IDC
Published	2003
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Connector Type	IDC, IDT
Color	Green
Gender	Male
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	12.4mm
Current Rating	5A
Approval Agency	CSA, UL
Number of Contacts	3
Wire Gauge	22-28 AWG
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	5A
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Number of Ways	3
Safety Approval	UL; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - IDC
Length	12.62mm
Width	10mm
Thickness	7.62mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1706183 Product Details

1706183 Overview

It comes in IDC, IDT packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON IDC Series of products.The part is mounted by Through Hole.The supply voltage of this chip should not exceed 160V.
