Name: 1706028
Brand: Phoenix Contact
SKU: 1706028
Price: 3.52000 USD
Availability: InStock

new-10%

1706028

Manufacturer part number:1706028

Manufacturer:Phoenix Contact

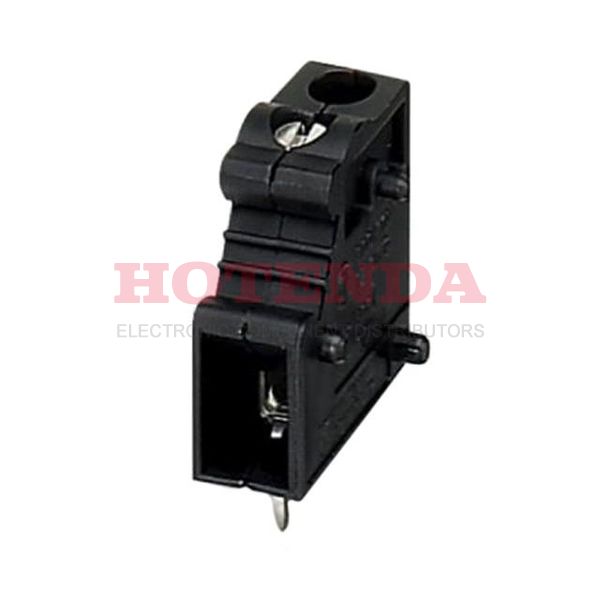

Description:7.5mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 14-30 AWG COMBICON GKDS

Case Package:SOT-23

Datasheet:1706028 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	3.890008g
Packaging	Bulk
Series	COMBICON GKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Voltage - Rated	630V
HTS Code	8536.69.40.40
Pitch	7.5mm
Current Rating	24A
Number of Contacts	1
Wire Gauge	14-30 AWG
Voltage	300V
Max Current Rating	24A
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	1
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Wire Cross Section	4 mm2
Fastening Method	SOLDER
Height	19mm
Length	7.5mm
Width	19.5mm
RoHS Status	RoHS Compliant

1706028 Product Details

1706028 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON GKDS Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
