Name: 1705540
Brand: Phoenix Contact
SKU: 1705540
Price: 2.21000 USD
Availability: InStock

new-10%

1705540

Manufacturer part number:1705540

Manufacturer:Phoenix Contact

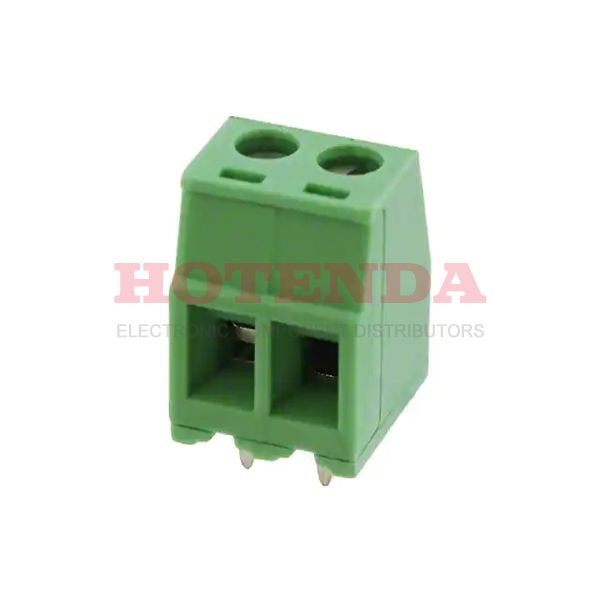

Description:0.150 3.81mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSD

Case Package:SOT-23

Datasheet:1705540 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.730001g
Packaging	Bulk
Series	COMBICON MKDSD
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Voltage - Rated	320V
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	9.3mm
Current Rating	8A
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	200V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	26 AWG
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	2
Height	9.3mm
Length	8.73mm
Width	15.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1705540 Product Details

1705540 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKDSD Series.There is a mounting hole at Through Hole.There should be no voltage above 0 on the supply line for this chip.
