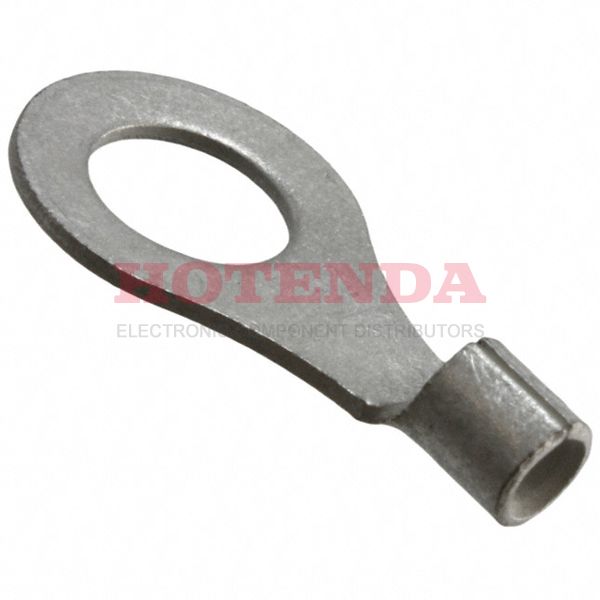

Name: 8-34124-1
Brand: TE Connectivity AMP Connectors
SKU: 8-34124-1
Price: 0.68000 USD
Availability: InStock

new-10%

8-34124-1

Manufacturer part number:8-34124-1

Manufacturer:TE Connectivity AMP Connectors

Description:8-34124-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:8-34124-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	13 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Packaging	Bulk
Series	Solistrand
Published	2009
Feature	Brazed Seam, Serrated Termination
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
Color	Blue
Gender	Female
HTS Code	8536.90.40.00
Orientation	Straight
Contact Finish	Tin
Wire Gauge	14-16 AWG
ELV	Compliant
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	14 AWG
Terminal and Terminal Block Type	RING TERMINAL
Insulation	Non-Insulated
Terminal Type	Circular
Wire Cross Section	2.62 mm2
Stud/Tab Size	1/4 Stud
Heavy Duty	No
Stud Diameter	6.35 mm
Number of Holes	1
Stud Size	M6
Length	21.72mm
Thickness	0.031 0.79mm
Length - Overall	0.855 21.72mm
Diameter - Inside	2.16 mm
Width - Outer Edges	0.469 11.91mm
Material Thickness	840μm
Tongue Thickness	840μm
RoHS Status	RoHS Compliant
Lead Free	Not Applicable

8-34124-1 Product Details

Description: The TE Connectivity / AMP Terminals 8-34124-1 Ring Connectors are a reliable and durable electrical connection solution. They are designed to provide a secure and reliable connection between two or more wires. The connectors feature a ring-style design with a #1/4 size and 14-16AWG wire gauge.

Features:
- Ring-style design
- #1/4 size
- 14-16AWG wire gauge
- Reliable and durable connection
- Easy to install

Applications: The TE Connectivity / AMP Terminals 8-34124-1 Ring Connectors are ideal for a variety of applications, including automotive, industrial, and consumer electronics. They are suitable for use in a wide range of electrical connections, including power, signal, and data connections.
