PK8-38R-T datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PK8-38R-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Polyvinylidene Fluoride (PVDF)
Packaging
Bulk
Series
Pan-Term®
Published
2011
Feature
Brazed Seam, Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Natural, Red Stripe
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
8 AWG
Wire/Cable Gauge
8 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.326 (8.28mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
3/8 Stud
Length
41.402mm
Thickness
0.040 1.02mm
Length - Overall
1.630 41.40mm
Width - Outer Edges
0.590 14.99mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:3156 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
200
$1.92015
$384.03
PK8-38R-T Product Details

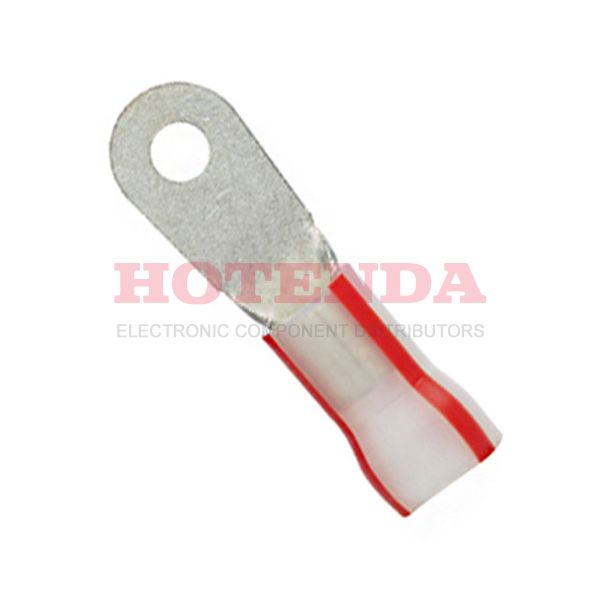

Description: The Panduit Terminals - Ring Connectors PK8-38R-T are ring tongue terminals made from tin plated copper. They are designed for 8AWG wire and have a diameter of 41.4mm and a length of 15mm.
Features: - Made from tin plated copper for superior conductivity and corrosion resistance - Designed for 8AWG wire - Diameter of 41.4mm and a length of 15mm - Easy to install and remove - UL and CSA approved
Applications: The Panduit Terminals - Ring Connectors PK8-38R-T are suitable for a variety of applications, including automotive, marine, and industrial wiring. They are ideal for connecting wires to electrical components, such as switches, relays, and circuit breakers.
