PMNF1-3R-3K Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Weight
3.769353kg
Material - Insulation
Polyamide (PA66), Nylon 6/6
Packaging
Reel
Series
Pan-Term®
Published
2006
Feature
Serrated Termination
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Red
HTS Code
8536.90.40.00
Depth
5.8mm
Wire Gauge
18-22 AWG
Wire Gauge (Max)
22 AWG
Wire Gauge (Min)
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.146 (3.71mm)
Insulation
Insulated
Terminal Type
Circular
Wire Cross Section
1.5 mm2
Stud/Tab Size
M3 Stud
Length
19.304mm
Thickness
0.032 0.81mm
Length - Overall
0.760 19.30mm
Width - Outer Edges
0.230 5.84mm
Radiation Hardening
No
RoHS Status
RoHS Compliant
In-Stock:4182 items

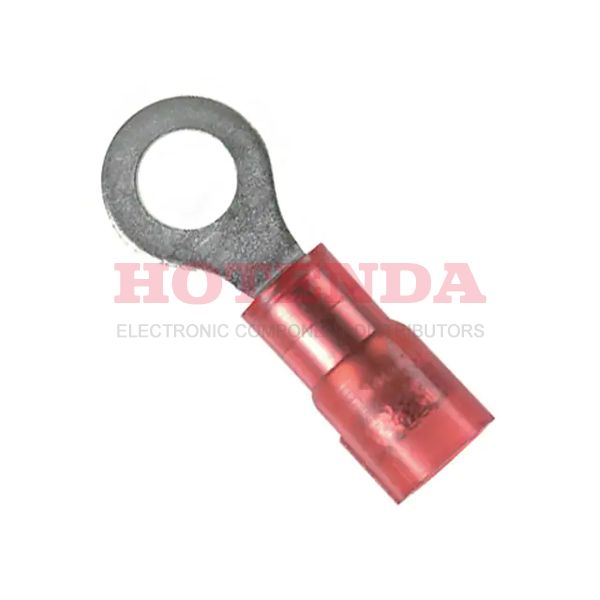

PMNF1-3R-3K Product Details
Description: Panduit PMNF1-3R-3K Terminals are metric ring terminals with funnel entry and nylar insulation. These terminals are designed to provide a secure connection for a variety of applications. The terminals are made from high-quality materials and feature a unique design that ensures a reliable connection. The terminals are UL listed and CSA certified for safety and reliability.
Features: • Metric ring terminals with funnel entry and nylar insulation • High-quality materials for reliable connections • Unique design for secure connections • UL listed and CSA certified for safety and reliability • Available in a variety of sizes and colors
Applications: Panduit PMNF1-3R-3K Terminals are ideal for a variety of applications, including automotive, industrial, and electrical. They can be used to connect wires, cables, and other components in a secure and reliable manner. The terminals are also suitable for use in harsh environments, such as outdoor and marine applications.
