PK6-38R-T datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PK6-38R-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Polyvinylidene Fluoride (PVDF)
Packaging
Bulk
Series
Pan-Term®
Published
2011
Feature
Brazed Seam, Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Natural, Blue Stripe
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
6 AWG
Wire/Cable Gauge
6 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.360 (9.14mm)
Insulation
Insulated
Terminal Type
Circular
Stud/Tab Size
3/8 Stud
Length
43.688mm
Thickness
0.045 1.14mm
Length - Overall
1.720 43.69mm
Width - Outer Edges
0.620 15.75mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:3133 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
200
$3.10260
$620.52

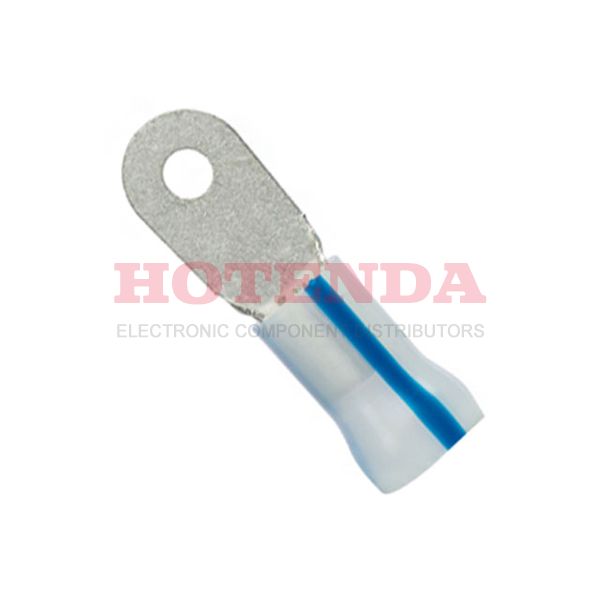

PK6-38R-T Product Details
Description: Panduit PK6-38R-T Ring Tongue Terminals are designed for use in electrical connections. They are made of tin plated copper and feature a 6AWG size with a 43.7mm length and 15.8mm width. These terminals are designed for use in a variety of applications, including automotive, industrial, and commercial.
Features: - Made of tin plated copper - 6AWG size - 43.7mm length - 15.8mm width - Designed for use in a variety of applications
Applications: Panduit PK6-38R-T Ring Tongue Terminals are suitable for use in automotive, industrial, and commercial applications. They are designed to provide reliable electrical connections and are suitable for use in a variety of applications.
