P6-56RHT6-E Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Pan-Term®
Published
2008
Feature
Brazed Seam
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Contact Finish
Nickel
Wire Gauge
6 AWG
Wire/Cable Gauge
6 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
D-Shaped
Stud/Tab Size
5/16 Stud
Length
33.782mm
Thickness
0.045 1.14mm
Length - Overall
1.330 33.78mm
Width - Outer Edges
0.620 15.75mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:3863 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.47000
$1.47
10
$1.43700
$14.37
25
$1.40040
$35.01
50
$1.36340
$68.17
100
$1.32660
$132.66
500
$1.28976
$644.88

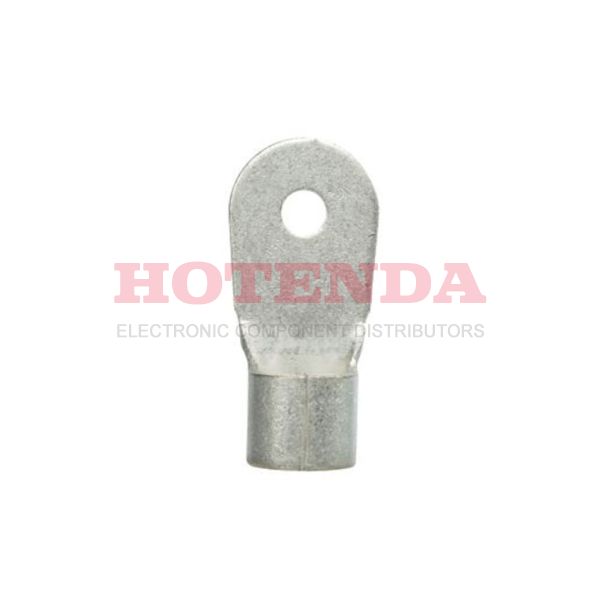

P6-56RHT6-E Product Details
Panduit Terminals - Ring Connectors P6-56RHT6-E are designed for use in electrical and electronic applications. They are made of nickel-plated copper and feature a 6 AWG wire size, 33.8mm length, and 15.8mm width. These terminals are designed to provide a secure connection between two wires and are suitable for use in a variety of applications, including automotive, industrial, and commercial. They are UL listed and CSA certified for safety and reliability. These terminals are easy to install and provide a reliable connection for a variety of applications. They are ideal for use in applications where a secure connection is required.
