1-320765-0 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available on our website
SOT-23
1-320765-0 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 1 week ago)
Factory Lead Time
13 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Solistrand
Published
2005
Feature
Brazed Seam, Serrated Termination
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
Crimp
ECCN Code
EAR99
HTS Code
8536.90.40.00
Orientation
Straight
Contact Finish
Tin
Wire Gauge
10-12 AWG
ELV
Compliant
Wire Gauge (Max)
10 AWG
Wire Gauge (Min)
12 AWG
Terminal and Terminal Block Type
WIRE TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Wire Cross Section
6.64 mm2
Stud/Tab Size
1 Stud
Heavy Duty
No
Terminal Gender
FEMALE
Stud Diameter
26.19 mm
Number of Holes
1
Length
48.0822mm
Plating Thickness
2.54μm
Thickness
0.039 0.99mm
Length - Overall
1.896 48.16mm
Diameter - Inside
3.28 mm
Width - Outer Edges
1.250 31.75mm
Material Thickness
1.07mm
Tongue Thickness
1.07mm
RoHS Status
RoHS Compliant
Lead Free
Not Applicable
In-Stock:1895 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$2.87000
$2.87
10
$2.75200
$27.52
25
$2.52240
$63.06
50
$2.40760
$120.38
100
$2.29290
$229.29
250
$2.00632
$501.58
500
$1.94900
$974.5
1-320765-0 Product Details

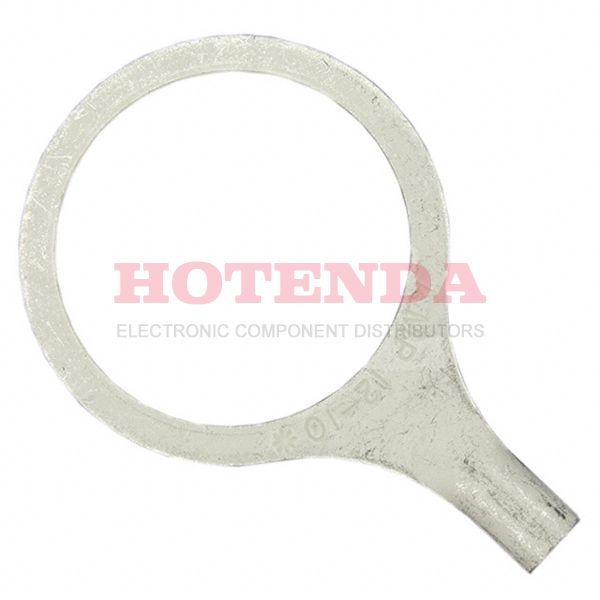

Description: TE Connectivity / AMP Terminals - Ring Connectors 1-320765-0 are a type of electrical connector designed for use in a variety of applications. These connectors feature a 10-12AWG #1 crimp design, allowing for a secure connection between two wires. The connectors are made from a durable material, making them suitable for use in a variety of environments.
Features: - 10-12AWG #1 crimp design - Durable material construction - Easy to install - Secure connection
Applications: TE Connectivity / AMP Terminals - Ring Connectors 1-320765-0 are suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. They can be used to connect two wires securely, making them ideal for use in wiring harnesses, power supplies, and other electrical systems.
