JS251156-BA

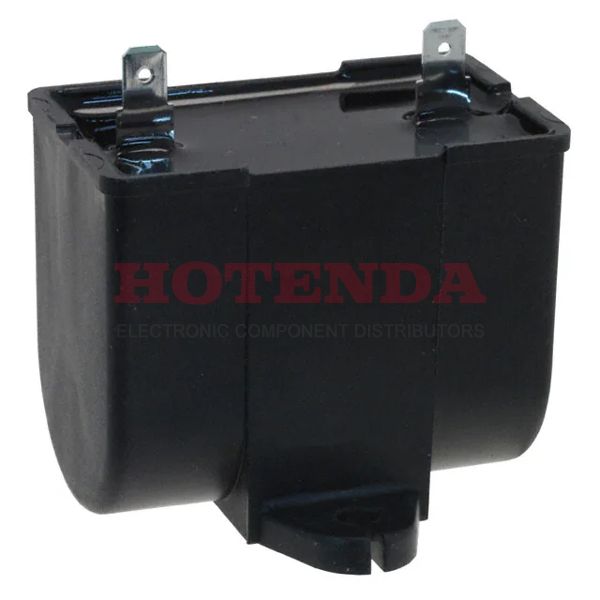

  • JS251156-BA - PMF 15μF Film Capacitor ±10% Rectangular Box Quick Connect - 0.187 (4.7mm) 250V-AC Polypropylene (PP), Metallized Chassis Mount
  • JS251156-BA - PMF 15μF Film Capacitor ±10% Rectangular Box Quick Connect - 0.187 (4.7mm) 250V-AC Polypropylene (PP), Metallized Chassis Mount

JS251156-BA

JS251156-BA

Panasonic Electronic Components

PMF 15μF Film Capacitor ±10% Rectangular Box Quick Connect - 0.187 (4.7mm) 250V-AC Polypropylene (PP), Metallized Chassis Mount

SOT-23

JS251156-BA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 16 Weeks
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-25°C~70°C
PackagingBulk
Published 2002
Series PMF
Size / Dimension 1.969Lx1.201W 50.00mmx30.50mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect - 0.187 (4.7mm)
Max Operating Temperature70°C
Min Operating Temperature -25°C
Applications Motor Run
Capacitance 15μF
Voltage - Rated AC 250V
Height Seated (Max) 1.654 42.00mm
Length 50.0126mm
Width 30.48mm
RoHS StatusRoHS Compliant
In-Stock:1012 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.184349$8.184349
10$7.721084$77.21084
100$7.284042$728.4042
500$6.871737$3435.8685
1000$6.482771$6482.771

JS251156-BA Product Details

JS251156-BA Overview


In a temperature range of -25°C~70°C, the device can be operated.

JS251156-BA Features



JS251156-BA Applications


There are a lot of Panasonic Electronic Components JS251156-BA applications of film capacitors.

  • VCO's
  • Test and measuring equipment
  • Bypassing
  • RF Modules
  • Snubbering
  • Coupling, decoupling
  • Compact fluorescent lamps (CFL)
  • Switch-mode power supplies
  • IGBT
  • Global positioning systems
