ECW-F2395HAQ

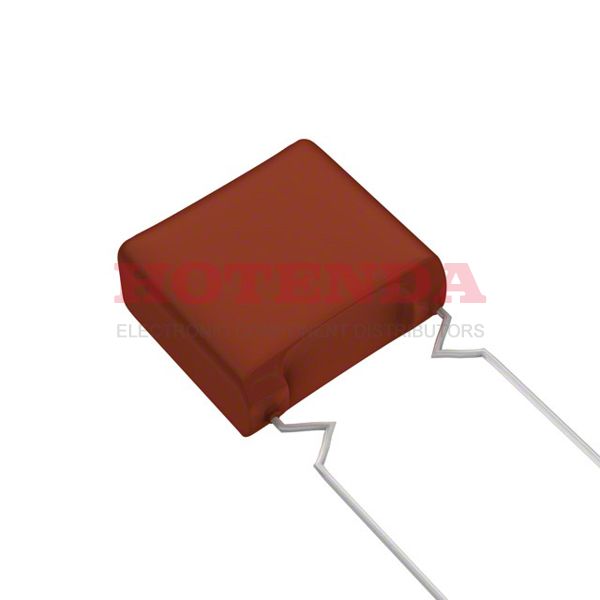

  • ECW-F2395HAQ - ECW-F(A) 3.9μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F2395HAQ - ECW-F(A) 3.9μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

ECW-F2395HAQ

ECW-F2395HAQ

Panasonic Electronic Components

ECW-F(A) 3.9μF Film Capacitor ±3% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F2395HAQ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECW-F(A)
Size / Dimension 0.937Lx0.531W 23.80mmx13.50mm
Tolerance ±3%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 3.9μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 20mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.787 20.00mm
Size Code 9453
Height Seated (Max) 1.094 27.80mm
Length 23.8mm
Width 13.5mm
RoHS StatusROHS3 Compliant
In-Stock:2023 items

Pricing & Ordering

QuantityUnit PriceExt. Price
100$2.55780$255.78

ECW-F2395HAQ Product Details

ECW-F2395HAQ Overview


Electrical devices with 0.787 20.00mm lead spacing are used in this application.It is capable of operating at -40°C~105°C degrees Celsius.

ECW-F2395HAQ Features



ECW-F2395HAQ Applications


There are a lot of Panasonic Electronic Components ECW-F2395HAQ applications of film capacitors.

  • Lighting
  • Bypassing
  • Switch mode power supplies
  • Matching networks
  • Mobile communications
  • VCO's
  • Compact fluorescent lamps (CFL)
  • Snubbering
  • Satellite TV
  • Industrial and automotive inverters
