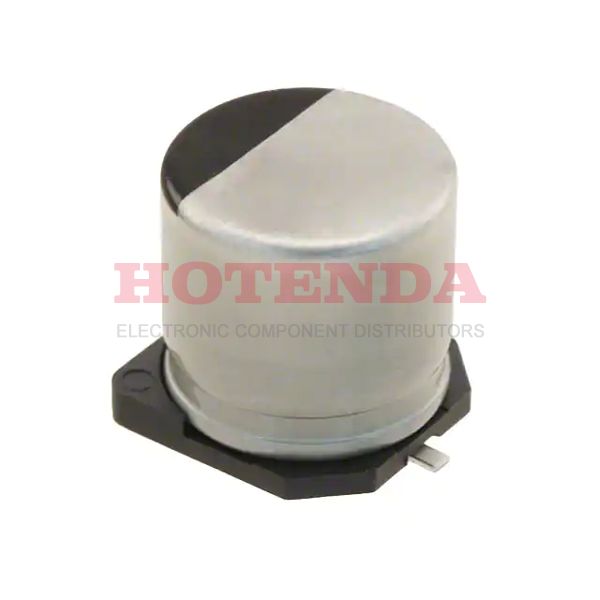

Name: EEH-ZA1J560P
Brand: Panasonic Electronic Components
SKU: EEH-ZA1J560P
Availability: InStock

new-10%

EEH-ZA1J560P

Manufacturer part number:EEH-ZA1J560P

Manufacturer:Panasonic Electronic Components

Description:EEH-ZA1J560P datasheet pdf and Aluminum - Polymer Capacitors product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:EEH-ZA1J560P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	PCB, Surface Mount
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Terminal Shape	FLAT
Material	Polymer
Surface Mount Land Size	0.406Lx0.406W 10.30mmx10.30mm
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Published	2012
Series	ZA
Size / Dimension	0.394Dia 10.00mm
Tolerance	±20%
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Hybrid
Applications	Automotive
HTS Code	8532.24.0020
Capacitance	56μF
Voltage - Rated DC	63V
Packing Method	TR, 15 INCH
Lead Pitch	4.6mm
ESR (Equivalent Series Resistance)	30mOhm
Polarity	POLARIZED
Lead Diameter	900 μm
Size Code	4141
Voltage	63V
Lifetime @ Temp	10000 Hrs @ 105°C
Leakage Current	3μA
Ripple Current	1.8A
Life (Hours)	5000 hours
Tan Delta	0.08
Ripple Current @ Low Frequency	270mA @ 100Hz
Ripple Current @ High Frequency	1.8A @ 100kHz
Ripple Current (AC)	1.8A
Diameter	10mm
Height	10.2mm
Height Seated (Max)	0.413 10.50mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

EEH-ZA1J560P Product Details

EEH-ZA1J560P Description

The EEH-ZA1J560P is a Conductive Polymer Hybrid Aluminum Electrolytic Capacitor.

EEH-ZA1J560P Features

Endurance: 10000h at 105 ℃
Low ESR and high ripple current (70 % over, Lower ESR than current V-FP)
HIGH voltage (to 80 V)
Equivalent to conductive polymer-type aluminium electrolytic capacitors
(There are few characteristics that change by temperature and frequency)
Vibration-proof product is available upon request. The new lineup of 06.3 product. (06.3, 08, 010)
AEC-Q200 compliant
RoHS compliant
