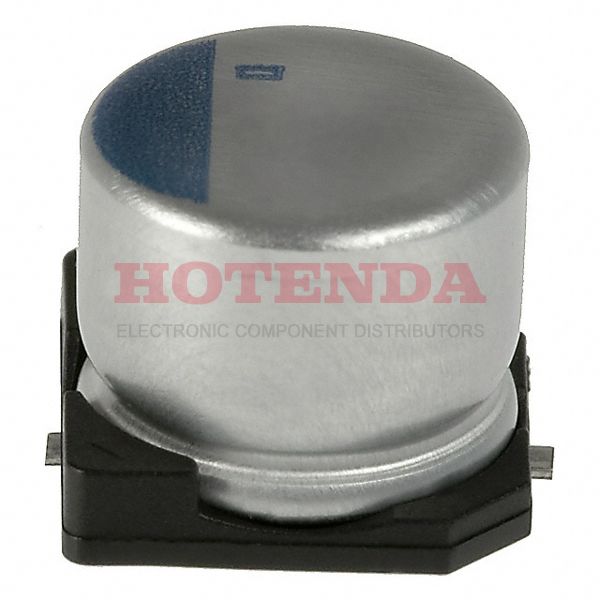

Name: APXC2R5ARA471MH70G
Brand: United Chemi-Con
SKU: APXC2R5ARA471MH70G
Availability: InStock

new-10%

APXC2R5ARA471MH70G

Manufacturer part number:APXC2R5ARA471MH70G

Manufacturer:United Chemi-Con

Description:470μF ±20% Radial, Can - SMD 0.264 6.70mm Tape & Reel (TR) 17mOhm NPCAP™-PXC Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:APXC2R5ARA471MH70G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Surface Mount Land Size	0.327Lx0.327W 8.30mmx8.30mm
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	NPCAP™-PXC
Published	2004
Size / Dimension	0.315Dia 8.00mm
Tolerance	±20%
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Type	Polymer
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Applications	General Purpose
Voltage - Rated	2.5V
Capacitance	470μF
Voltage - Rated DC	2.5V
ESR (Equivalent Series Resistance)	17mOhm
Lifetime @ Temp	1000 Hrs @ 105°C
Ripple Current	3.42A
Life (Hours)	1000 hours
Ripple Current @ High Frequency	3.42A @ 100kHz
Diameter	8mm
Height	6.7mm
Height Seated (Max)	0.264 6.70mm
Length	9mm
Width	8.3mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

APXC2R5ARA471MH70G Product Details

APXC2R5ARA471MH70G Overview

3.42A @ 100kHz ripple current @ high frequency is required in order to power systems.There is a 17mOhm in ESR (Equivalent Series Resistance) in this electrical device.Stable operation requires -55°C~105°C as the operating temperature.

APXC2R5ARA471MH70G Features

3.42A @ 100kHz ripple current on a high frequency
a 17mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
