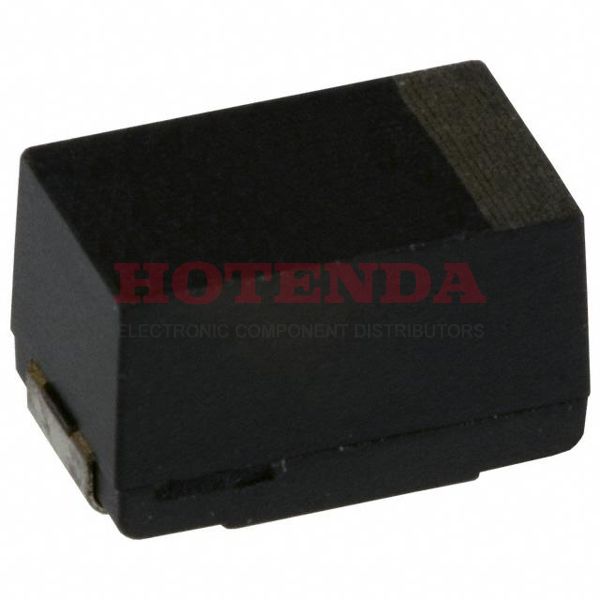

Name: EEF-UE0G271ER
Brand: Panasonic Electronic Components
SKU: EEF-UE0G271ER
Availability: InStock

new-10%

EEF-UE0G271ER

Manufacturer part number:EEF-UE0G271ER

Manufacturer:Panasonic Electronic Components

Description:270μF ±20% 2917 (7343 Metric) 0.169 4.30mm Tape & Reel (TR) 12mOhm SP-Cap UE Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:EEF-UE0G271ER Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Published	2013
Series	SP-Cap UE
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Applications	General Purpose
Capacitance	270μF
Voltage - Rated DC	4V
Packing Method	BULK
Depth	4.3mm
Case Code (Metric)	7343
Case Code (Imperial)	2917
ESR (Equivalent Series Resistance)	12mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	4V
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.108mA
Ripple Current	3.3A
Life (Hours)	1000 hours
Tan Delta	0.1
Ripple Current @ High Frequency	3.3A @ 100kHz
Height	4.2mm
Height Seated (Max)	0.169 4.30mm
Length	7.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

EEF-UE0G271ER Product Details

EEF-UE0G271ER Overview

System power is determined by 3.3A @ 100kHz ripple current on a high frequency.Electrical device with 12mOhm ESR (Equivalent Series Resistance).(DC) voltages rated at 4V achieve stable operation.It is recommended to operate at -40°C~105°C for stable operation.

EEF-UE0G271ER Features

3.3A @ 100kHz ripple current on a high frequency
a 12mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 4V
an operating temperature of -40°C~105°C
