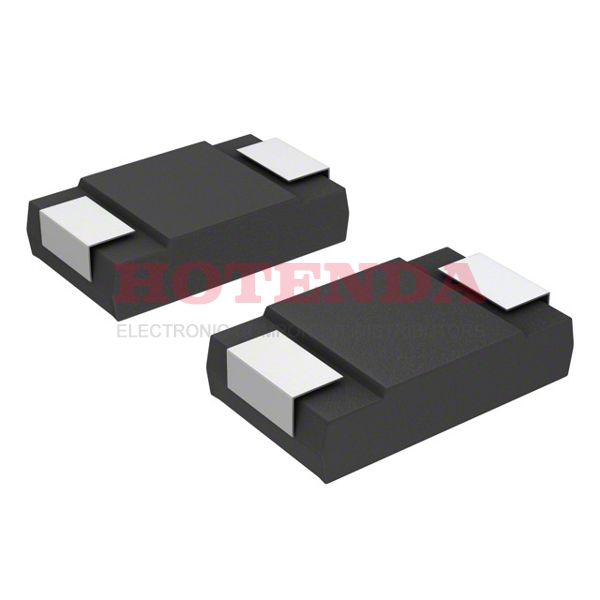

ESRD560M04R Overview
Power systems require ripple current at a high frequency of 2.5A @ 100kHz.A value of 18mOhm is assigned to the electrical device's ESR (Equivalent Series Resistance).Upon operation, the rated (DC) voltage (URdc) must be equal to 4V.Note that this part has a dissipation factor of 0.06 %.Stable operation requires a temperature of -55°C~105°C.
ESRD560M04R Features
2.5A @ 100kHz ripple current on a high frequency
a 18mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 4V
an operating temperature of -55°C~105°C
ESRD560M04R Applications
There are a lot of Cornell Dubilier Electronics (CDE) ESRD560M04R applications of aluminum polymer capacitors.
- LED driver power supplies
- Buck up Power Supplies of CPU(VRM etc.)
- Servers and adapters (laptop power supplies)
- Medical equipment
- Motherboards
- Miniature high Power Supply.
- Phone chargers
- Switching Power Supply and DC/DC Converter.
