ECW-F4914JL

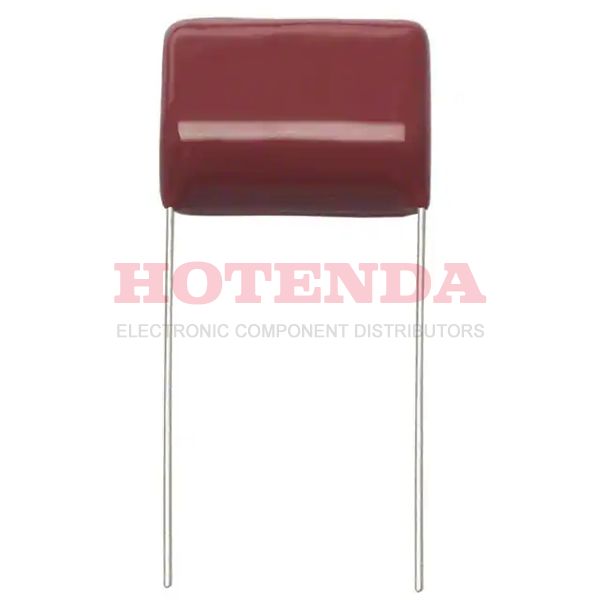

  • ECW-F4914JL - ECW-F(L) 0.91μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F4914JL - ECW-F(L) 0.91μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole

ECW-F4914JL

ECW-F4914JL

Panasonic Electronic Components

ECW-F(L) 0.91μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F4914JL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.906Lx0.488W 23.00mmx12.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.91μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Lead Pitch 20mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.787 20.00mm
Lead Diameter 800 μm
Size Code 9149
Height 19.2mm
Height Seated (Max) 0.815 20.70mm
Width 12.4mm
RoHS StatusRoHS Compliant
In-Stock:6971 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.91000$1.91
10$1.54600$15.46
100$1.18020$118.02
500$0.89920$449.6

ECW-F4914JL Product Details

ECW-F4914JL Overview


There is 0.787 20.00mm lead spacing on this electrical device.In addition to operating at -40°C~105°C degrees, the device is capable of operating at other temperatures as well.

ECW-F4914JL Features



ECW-F4914JL Applications


There are a lot of Panasonic Electronic Components ECW-F4914JL applications of film capacitors.

  • Compact fluorescent lamps (CFL)
  • Snubbering
  • Lighting
  • Switch mode power supplies
  • RFI for automotive
  • Blocking
  • IGBT
  • Mobile communications
  • Matching networks
  • Bypassing
