R76PD2100SE30J

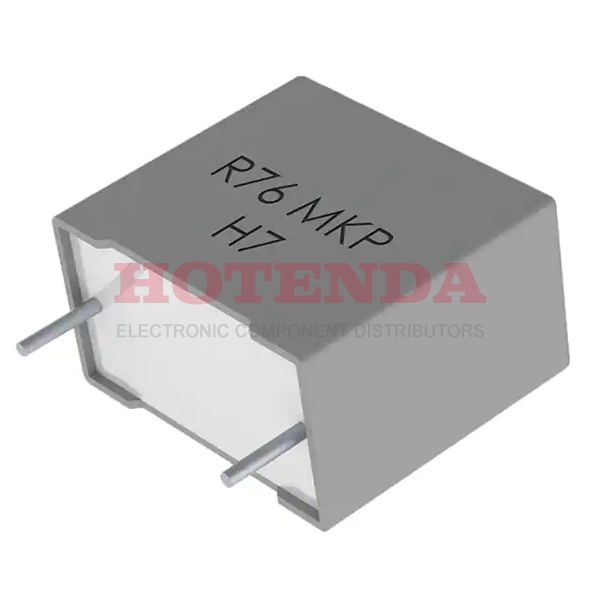

  • R76PD2100SE30J - R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole
  • R76PD2100SE30J - R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

R76PD2100SE30J

R76PD2100SE30J

KEMET

R76 10000pF Film Capacitor ±5% Radial PC Pins 630V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R76PD2100SE30J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~110°C
PackagingBulk
Published 2015
Series R76
Size / Dimension 0.413Lx0.236W 10.50mmx6.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Additional FeatureRATED AC VOLTAGE (V): 250
HTS Code8532.25.00.70
Capacitance 10000pF
Voltage - Rated DC 630V
Depth 6mm
Voltage - Rated AC 250V
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.295 7.50mm
Size Code 4124
Height 12mm
Height Seated (Max) 0.476 12.10mm
Length 10.5mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:24084 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.84000$0.84
10$0.61600$6.16
100$0.42240$42.24
500$0.33440$167.2

R76PD2100SE30J Product Details

R76PD2100SE30J Overview


Electrical devices such as this have a lead spacing of 0.295 7.50mm.A temperature of -55°C~110°C is suitable for operation of the device.

R76PD2100SE30J Features



R76PD2100SE30J Applications


There are a lot of KEMET R76PD2100SE30J applications of film capacitors.

  • Global positioning systems
  • Mobile communications
  • Filters
  • Satellite TV
  • RF Modules
  • Blocking
  • Switch-mode power supplies
  • Snubbering
  • IGBT
  • Audio/video equipment
