ECQ-V1H473JL3

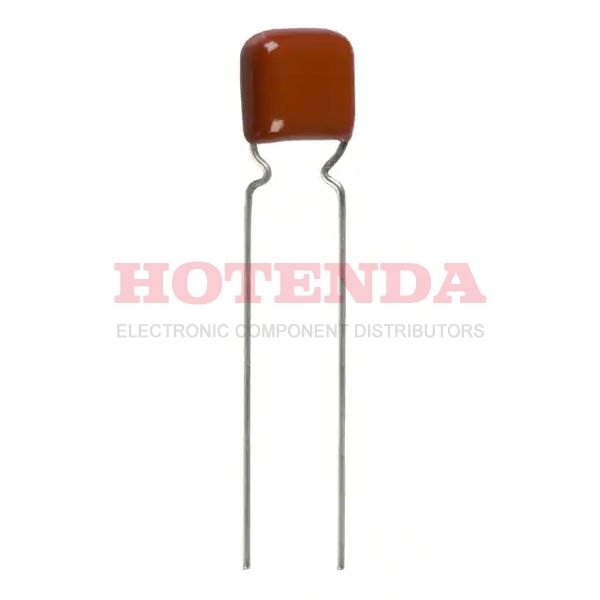

  • ECQ-V1H473JL3 - ECQ-V 0.047μF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester, Metallized - Stacked PCB, Through Hole
  • ECQ-V1H473JL3 - ECQ-V 0.047μF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester, Metallized - Stacked PCB, Through Hole

ECQ-V1H473JL3

ECQ-V1H473JL3

Panasonic Electronic Components

ECQ-V 0.047μF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester, Metallized - Stacked PCB, Through Hole

SOT-23

ECQ-V1H473JL3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact PlatingTin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized - Stacked
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Published 2011
Series ECQ-V
Size / Dimension 0.287Lx0.126W 7.30mmx3.20mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications General Purpose
Voltage - Rated 50V
HTS Code8532.25.00.70
Capacitance 0.047μF
Voltage - Rated DC 50V
Packing Method AMMO PACK
Depth 3.2mm
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2912
Height 5mm
Height Seated (Max) 0.236 6.00mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:1153 items

ECQ-V1H473JL3 Product Details

ECQ-V1H473JL3 Overview


Electrical devices with 0.197 5.00mm lead spacing are used in this application.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-V1H473JL3 Features



ECQ-V1H473JL3 Applications


There are a lot of Panasonic Electronic Components ECQ-V1H473JL3 applications of film capacitors.

  • Matching networks
  • Compact fluorescent lamps (CFL)
  • Snubbering
  • RFI for automotive
  • Test and measuring equipment
  • Mobile communications
  • Switch-mode power supplies
  • RF Modules
  • Audio/video equipment
  • Satellite TV
