FCP2416H224J

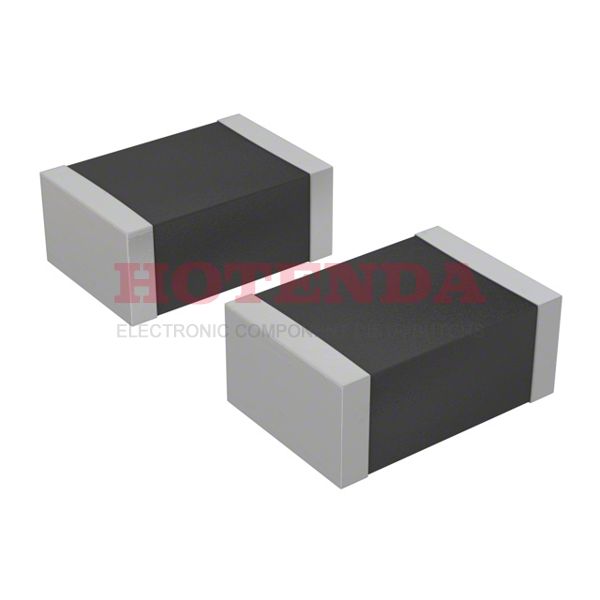

  • FCP2416H224J - FCP 0.22μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount
  • FCP2416H224J - FCP 0.22μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

FCP2416H224J

FCP2416H224J

Cornell Dubilier Electronics (CDE)

FCP 0.22μF Film Capacitor ±5% 2416 (6041 Metric) Solder Pads 50V-DC Polyphenylene Sulfide (PPS) Surface Mount

SOT-23

FCP2416H224J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS)
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series FCP
Size / Dimension 0.236Lx0.161W 6.00mmx4.10mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications High Frequency, Switching
HTS Code8532.25.00.45
Capacitance 0.22μF
Voltage - Rated DC 50V
Packing Method TR
Reach Compliance Code unknown
Case Code (Metric) 6041
Case Code (Imperial) 2416
Capacitor Type FILM CAPACITOR
Dielectric PPS
Life (Hours) 1000 hours
Height 2.8mm
Length 6mm
Width 4.1mm
RoHS StatusROHS3 Compliant
In-Stock:4491 items

FCP2416H224J Product Details

FCP2416H224J Overview


Temperatures as low as -55°C~125°C are suitable for the device.

FCP2416H224J Features



FCP2416H224J Applications


There are a lot of Cornell Dubilier Electronics (CDE) FCP2416H224J applications of film capacitors.

  • Lighting
  • RFI for automotive
  • Audio/video equipment
  • Snubbering
  • Switch mode power supplies
  • Matching networks
  • VCO's
  • RF Modules
  • Switch-mode power supplies
  • Global positioning systems
