475PHC700K

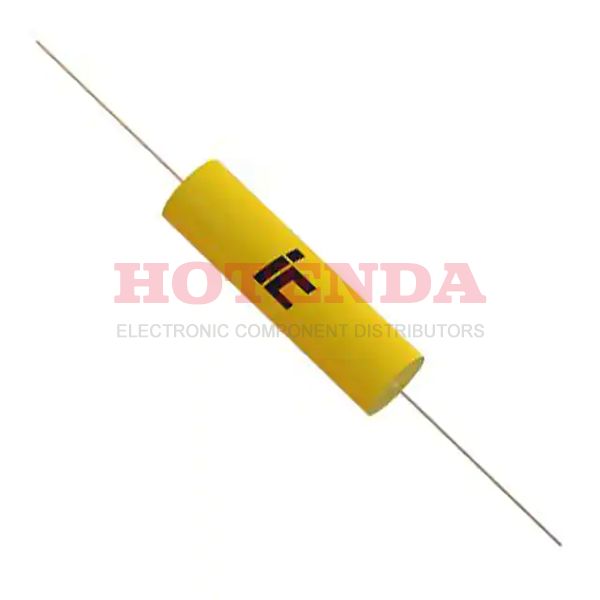

  • 475PHC700K - PHC 4.7μF Film Capacitor ±10% Axial PC Pins 700V-DC 400V-AC Polypropylene (PP), Metallized Through Hole
  • 475PHC700K - PHC 4.7μF Film Capacitor ±10% Axial PC Pins 700V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

475PHC700K

475PHC700K

Illinois Capacitor

PHC 4.7μF Film Capacitor ±10% Axial PC Pins 700V-DC 400V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

475PHC700K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Series PHC
Size / Dimension 1.161Diax2.323L 29.50mmx59.00mm
Tolerance ±10%
JESD-609 Code e3
Feature Low ESR, Low ESL
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications DC Link, DC Filtering; High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 400
HTS Code8532.25.00.60
Capacitance 4.7μF
Voltage - Rated DC 700V
Voltage - Rated AC 400V
Capacitor Type FILM CAPACITOR
ESR (Equivalent Series Resistance) 6.1mOhm
RoHS StatusROHS3 Compliant
In-Stock:4676 items

Pricing & Ordering

QuantityUnit PriceExt. Price
90$5.86256$527.6304

475PHC700K Product Details

475PHC700K Overview


There is 6.1mOhm ESR (Equivalent Series Resistance) from the device.-40°C~85°C is the maximum temperature at which the device can operate.

475PHC700K Features


6.1mOhm equivalent series resistance (ESR)

475PHC700K Applications


There are a lot of Illinois Capacitor 475PHC700K applications of film capacitors.

  • Satellite TV
  • Industrial and automotive inverters
  • Switch mode power supplies
  • Switch-mode power supplies
  • Bypassing
  • Audio/video equipment
  • Snubbering
  • RFI for automotive
  • Mobile communications
  • TV and monitor sets
