ECQ-E6564JF

  • ECQ-E6564JF - ECQ-E(F) 0.56μF Film Capacitor ±5% Radial PC Pins 630V-DC Polyester, Metallized Through Hole
  • ECQ-E6564JF - ECQ-E(F) 0.56μF Film Capacitor ±5% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

ECQ-E6564JF

ECQ-E6564JF

Panasonic Electronic Components

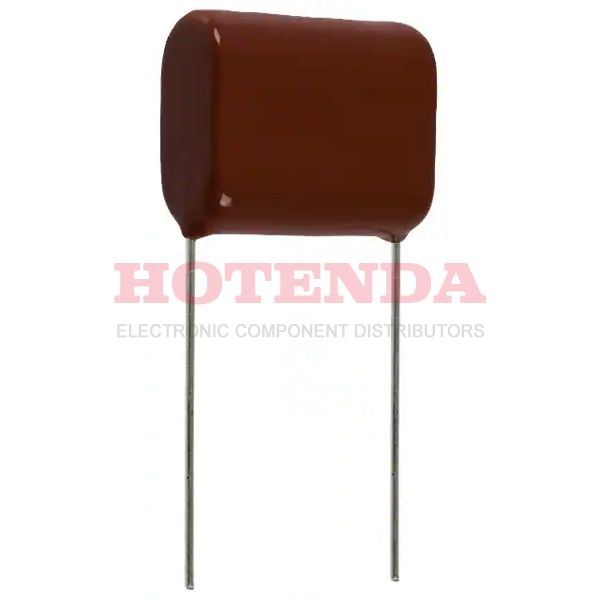

ECQ-E(F) 0.56μF Film Capacitor ±5% Radial PC Pins 630V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E6564JF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECQ-E(F)
Size / Dimension 1.024Lx0.394W 26.00mmx10.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 630V
HTS Code8532.25.00.70
Capacitance 0.56μF
Voltage - Rated DC 630V
Terminal Pitch15mm
Depth 10mm
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Height 20mm
Height Seated (Max) 0.846 21.50mm
Length 26mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:7013 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.982788$0.982788
10$0.927158$9.27158
100$0.874677$87.4677
500$0.825168$412.584
1000$0.778460$778.46

ECQ-E6564JF Product Details

ECQ-E6564JF Overview


Electrical devices have 0.886 22.50mm lead spacing.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-E6564JF Features




ECQ-E6564JF Applications


There are a lot of Panasonic Electronic Components
ECQ-E6564JF applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
