ECQ-E2W225KH

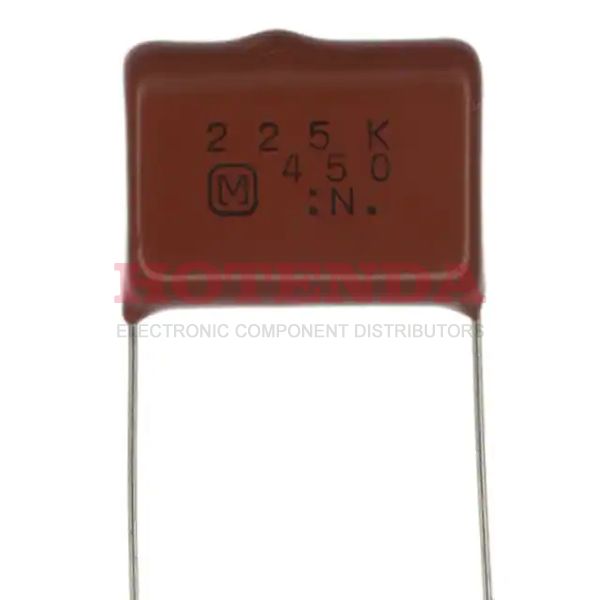

  • ECQ-E2W225KH - ECQ-E(H) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole
  • ECQ-E2W225KH - ECQ-E(H) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole

ECQ-E2W225KH

ECQ-E2W225KH

Panasonic Electronic Components

ECQ-E(H) 2.2μF Film Capacitor ±10% Radial PC Pins 450V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2W225KH Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2008
Series ECQ-E(H)
Size / Dimension 1.012Lx0.370W 25.70mmx9.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications EMI, RFI Suppression
Additional FeatureNON INDUCTIVE
Capacitance 2.2μF
Voltage - Rated DC 450V
Depth 9.4mm
Reach Compliance Code unknown
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Height 16.3mm
Height Seated (Max) 0.815 20.70mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:2250 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$38.397157$38.397157
10$36.223733$362.23733
100$34.173333$3417.3333
500$32.238993$16119.4965
1000$30.414144$30414.144

ECQ-E2W225KH Product Details

ECQ-E2W225KH Overview


Its lead spacing is 0.886 22.50mm.In a temperature range of -40°C~105°C, the device can be operated.

ECQ-E2W225KH Features



ECQ-E2W225KH Applications


There are a lot of Panasonic Electronic Components ECQ-E2W225KH applications of film capacitors.

  • Switch-mode power supplies
  • TV and monitor sets
  • Satellite TV
  • RF Modules
  • RFI for automotive
  • IGBT
  • Industrial and automotive inverters
  • Electronic ballasts
  • Switch mode power supplies
  • Mobile communications
