ECQ-E1393KF

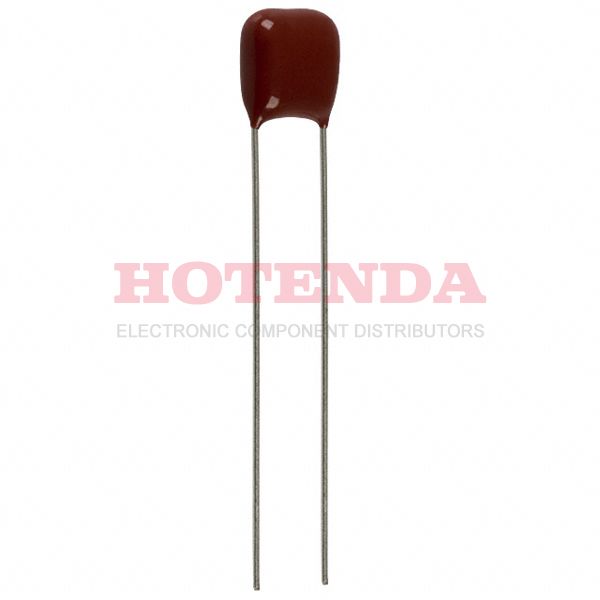

  • ECQ-E1393KF - ECQ-E(F) 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole
  • ECQ-E1393KF - ECQ-E(F) 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

ECQ-E1393KF

ECQ-E1393KF

Panasonic Electronic Components

ECQ-E(F) 0.039μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E1393KF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2002
Series ECQ-E(F)
Size / Dimension 0.307Lx0.193W 7.80mmx4.90mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature105°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.039μF
Voltage - Rated DC 100V
Lead Pitch 5.0038mm
Lead Length 20mm
Dielectric PET
Lead Spacing0.197 5.00mm
Height 8mm
Height Seated (Max) 0.354 9.00mm
Length 7.7978mm
Width 4.9022mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
Lead Free Contains Lead
In-Stock:2897 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.39000$0.39
10$0.24100$2.41

ECQ-E1393KF Product Details

ECQ-E1393KF Overview


A 0.197 5.00mm lead spacing is used in this electrical device.It is capable of operating at -40°C~105°C degrees Celsius.

ECQ-E1393KF Features



ECQ-E1393KF Applications


There are a lot of Panasonic Electronic Components ECQ-E1393KF applications of film capacitors.

  • Battery management system
  • Satellite TV
  • Coupling, decoupling
  • RFI for automotive
  • Switch-mode power supplies
  • Lighting
  • Compact fluorescent lamps (CFL)
  • Industrial and automotive inverters
  • Filtering
  • Audio/video equipment
