ECQ-E2184KS

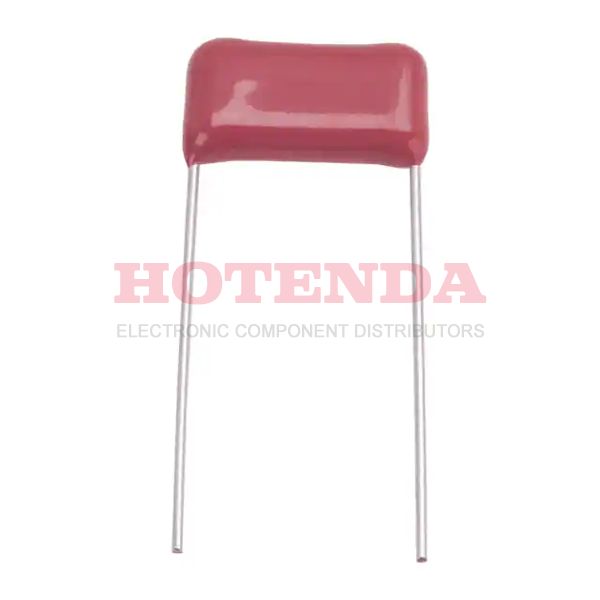

  • ECQ-E2184KS - ECQ-E(K) 0.18μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2184KS - ECQ-E(K) 0.18μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2184KS

ECQ-E2184KS

Panasonic Electronic Components

ECQ-E(K) 0.18μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2184KS Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2002
Series ECQ-E(K)
Size / Dimension 0.689Lx0.217W 17.50mmx5.50mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.18μF
Voltage - Rated DC 250V
Lead Pitch 15.0114mm
Lead Length 25mm
Lead Spacing0.591 15.00mm
Height 10.5mm
Height Seated (Max) 0.453 11.50mm
Length 17.5006mm
Width 5.5118mm
RoHS StatusRoHS Compliant
In-Stock:3509 items

ECQ-E2184KS Product Details

ECQ-E2184KS Overview


Its lead spacing is 0.591 15.00mm.Temperatures of -40°C~85°C are suitable for operating the device.

ECQ-E2184KS Features



ECQ-E2184KS Applications


There are a lot of Panasonic Electronic Components ECQ-E2184KS applications of film capacitors.

  • RF Modules
  • Filters
  • Blocking
  • Coupling, decoupling
  • VCO's
  • Switch-mode power supplies
  • IGBT
  • Switch mode power supplies
  • Satellite TV
  • Lighting
