ECQ-E1224KZ

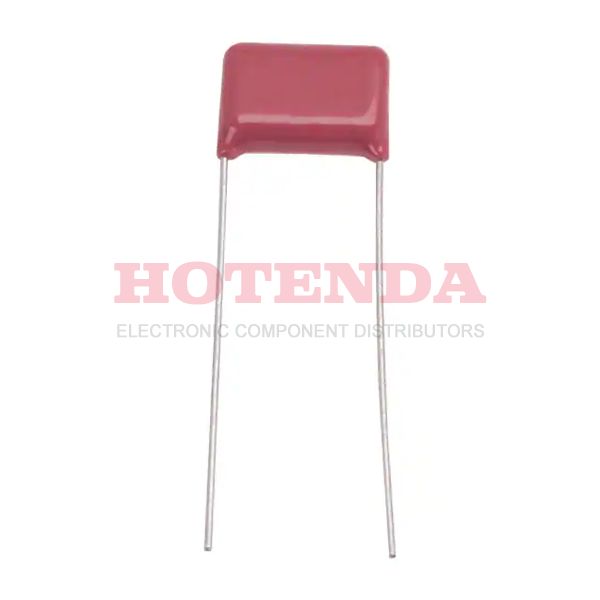

  • ECQ-E1224KZ - ECQ-E(K) 0.22μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole
  • ECQ-E1224KZ - ECQ-E(K) 0.22μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

ECQ-E1224KZ

ECQ-E1224KZ

Panasonic Electronic Components

ECQ-E(K) 0.22μF Film Capacitor ±10% Radial PC Pins 100V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E1224KZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2002
Series ECQ-E(K)
Size / Dimension 0.472Lx0.197W 12.00mmx5.00mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.22μF
Voltage - Rated DC 100V
Lead Pitch 10.0076mm
Lead Length 25mm
Lead Spacing0.394 10.00mm
Height 10.5mm
Height Seated (Max) 0.453 11.50mm
Length 11.9888mm
Width 5.0038mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:3802 items

ECQ-E1224KZ Product Details

ECQ-E1224KZ Overview


There is 0.394 10.00mm lead spacing on this electrical device.Devices with a -40°C~85°C temperature capability can be operated.

ECQ-E1224KZ Features



ECQ-E1224KZ Applications


There are a lot of Panasonic Electronic Components ECQ-E1224KZ applications of film capacitors.

  • Bypassing
  • Compact fluorescent lamps (CFL)
  • Electronic ballasts
  • Switch-mode power supplies
  • Global positioning systems
  • VCO's
  • Filtering
  • Switch mode power supplies
  • Filters
  • Lighting
