Name: OSTTB022161
Brand: On Shore Technology Inc.
SKU: OSTTB022161
Price: 1.16000 USD
Availability: InStock

new-10%

OSTTB022161

Manufacturer part number:OSTTB022161

Manufacturer:On Shore Technology Inc.

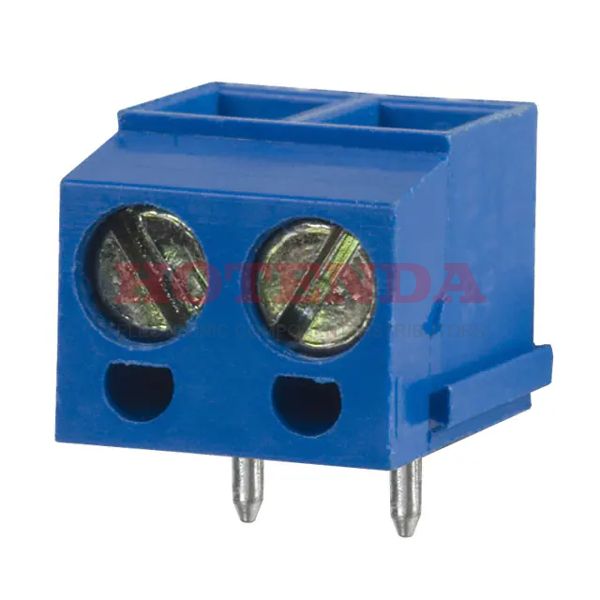

Description:0.200 5.08mm Blue Bulk Thermoplastic Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG OSTTB

Case Package:SOT-23

Datasheet:OSTTB022161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTB
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.200 5.08mm
Wire Gauge	14-22 AWG
Voltage	250V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	2
Safety Approval	CUL; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	2
Height	9mm
Length	10.2mm
Width	12.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTB022161 Product Details

OSTTB022161 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the OSTTB Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
