Name: OSTTA100161
Brand: On Shore Technology Inc.
SKU: OSTTA100161
Price: 2.28000 USD
Availability: InStock

new-10%

OSTTA100161

Manufacturer part number:OSTTA100161

Manufacturer:On Shore Technology Inc.

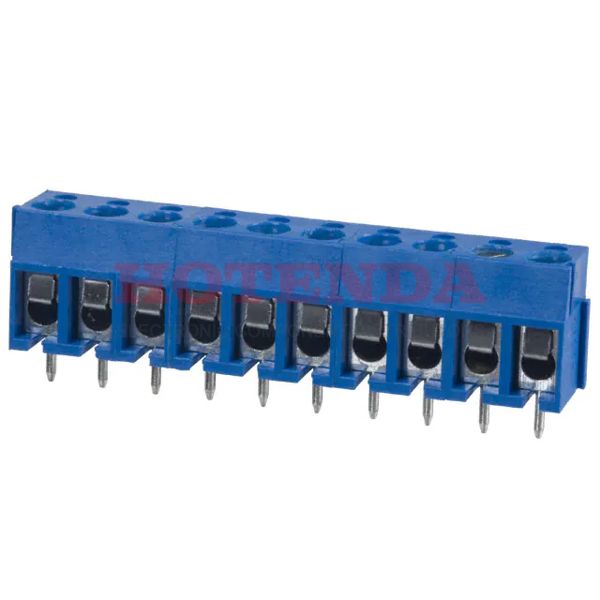

Description:0.197 5.00mm Blue Bulk Thermoplastic Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-26 AWG OSTTA

Case Package:SOT-23

Datasheet:OSTTA100161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Zinc
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTA
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Wire Gauge	14-26 AWG
Voltage	250V
Plating	Steel
Number of Levels	1
Current	16A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.3 Nm (2.6 Lb-In)
Number of Ways	10
Safety Approval	CSA; UL; VDE
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	10
Wire Cross Section	2.5 mm2
Height	12.6mm
Length	50mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTA100161 Product Details

OSTTA100161 Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the OSTTA Series.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.As a result, the device runs at -30°C~105°C Operating Temperature.
