Name: ED550/8DS
Brand: On Shore Technology Inc.
SKU: ED550/8DS
Price: 2.88000 USD
Availability: InStock

new-10%

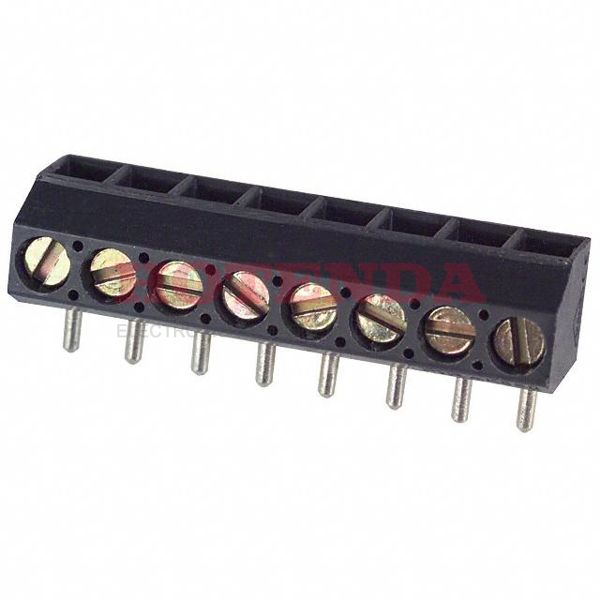

ED550/8DS

Manufacturer part number:ED550/8DS

Manufacturer:On Shore Technology Inc.

Description:0.138 3.50mm Gray Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-28 AWG ED550/DS

Case Package:SOT-23

Datasheet:ED550/8DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	8
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED550/DS
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	8
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Gray
Number of Rows	1
Pitch	0.138 3.50mm
Lead Pitch	3.5mm
Housing Color	Grey
Wire Gauge	16-28 AWG
Voltage	125V
Plating	Steel
Number of Levels	1
Current	6A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	8
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	8
Height	6.5mm
Length	28mm
Width	8.2mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

ED550/8DS Product Details

ED550/8DS Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED550/DS Series.There are 8 pins on the device.If the temperature is below 105°C, it's best to use it.-30°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
