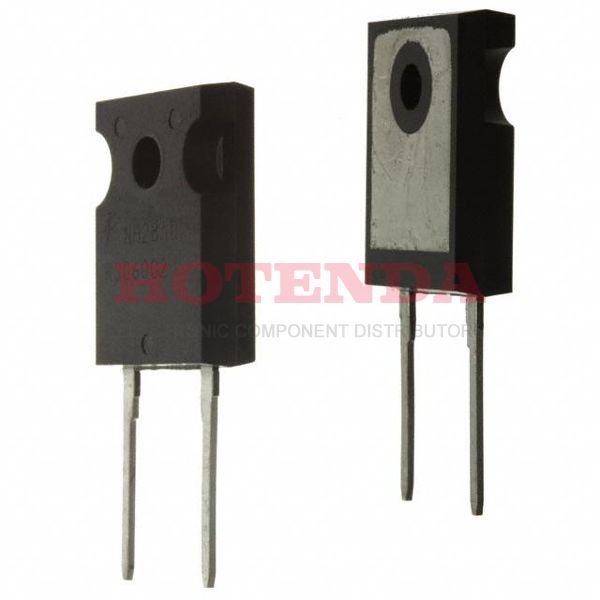

Name: RURG80100-F085
Brand: ON Semiconductor
SKU: RURG80100-F085
Price: 4.25000 USD
Availability: InStock

new-10%

RURG80100-F085

Manufacturer part number:RURG80100-F085

Manufacturer:ON Semiconductor

Description:RURG80100-F085 datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:RURG80100-F085 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-2
Weight	6.33g
Diode Element Material	SILICON
Packaging	Tube
Series	Automotive, AEC-Q101
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	Tin (Sn)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Additional Feature	FREE WHEELING DIODE
Technology	AVALANCHE
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PSFM-T2
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	250μA @ 80V
Voltage - Forward (Vf) (Max) @ If	1.9V @ 80A
Forward Current	80A
Operating Temperature - Junction	-65°C~175°C
Application	ULTRA FAST SOFT RECOVERY POWER
Voltage - DC Reverse (Vr) (Max)	1000V
Max Reverse Voltage (DC)	1kV
Average Rectified Current	80A
Number of Phases	1
Reverse Recovery Time	200 ns
Max Repetitive Reverse Voltage (Vrrm)	1kV
Reverse Current-Max	250μA
RoHS Status	ROHS3 Compliant

RURG80100-F085 Product Details

RURG80100-F085 Overview

Devices with this rating have an average rectified current of 80A volts.The allowable value of forward current reaches 80A.Upon reaching maximum reverse current, it reaches 250μA.
