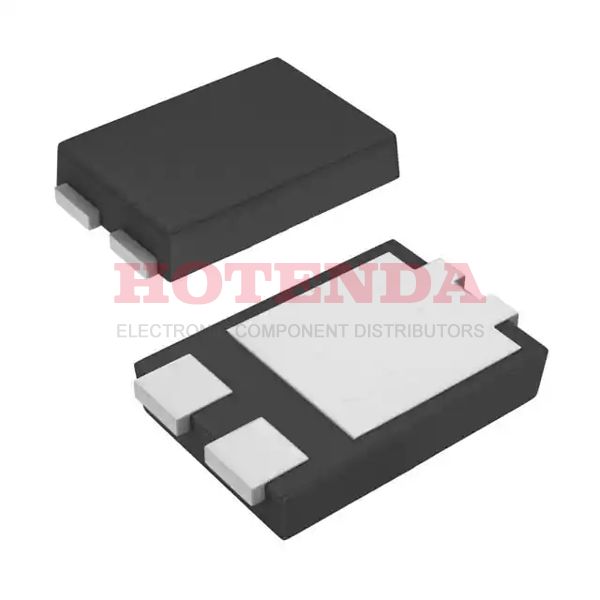

DST1545S

Name: DST1545S
Brand: Littelfuse Inc.
SKU: DST1545S
Price: 1.24000 USD
Availability: InStock

new-10%

Manufacturer part number:DST1545S

Manufacturer:Littelfuse Inc.

Description:DST1545S datasheet pdf and Diodes - Rectifiers - Single product details from Littelfuse Inc. stock available on our website

Case Package:SOT-23

Datasheet:DST1545S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2017
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Additional Feature	FREE WHEELING DIODE
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-F3
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1.5mA @ 45V
Voltage - Forward (Vf) (Max) @ If	580mV @ 15A
Case Connection	CATHODE
Forward Current	15A
Operating Temperature - Junction	-55°C~150°C
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	45V
Number of Phases	1
Rep Pk Reverse Voltage-Max	45V
JEDEC-95 Code	TO-277B
Capacitance @ Vr, F	868pF @ 5V 1MHz
Reverse Current-Max	1500μA
RoHS Status	ROHS3 Compliant
