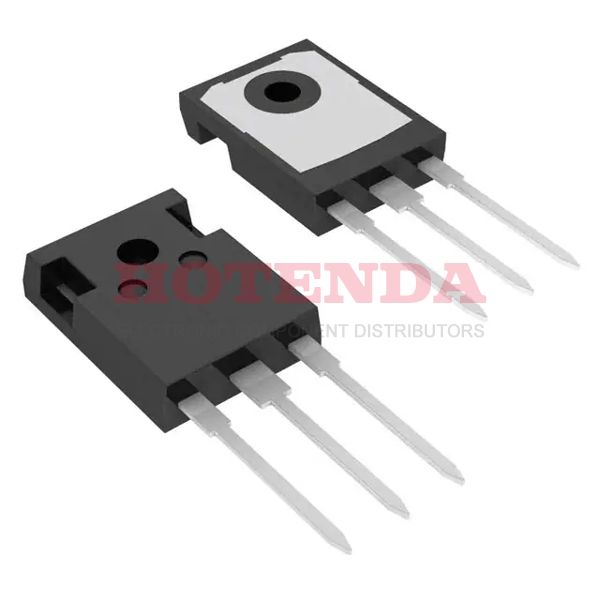

RFG70N06 Description
The RFG70N06 is an N-Channel power MOSFET made with MegaFET technology. This method, which employs feature sizes similar to those used in LSI circuits, maximizes silicon utilization, resulting in a remarkable performance. They were created for use in switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be directly controlled by integrated circuits.
RFG70N06 Features
70A, 60V
rDS(ON)= 0.014Ω
Temperature Compensating PSPICE? Model
Peak Current vs Pulse Width Curve
UIS Rating Curve (Single Pulse)
175°C Operating Temperature
Related Literature
RFG70N06 Applications
