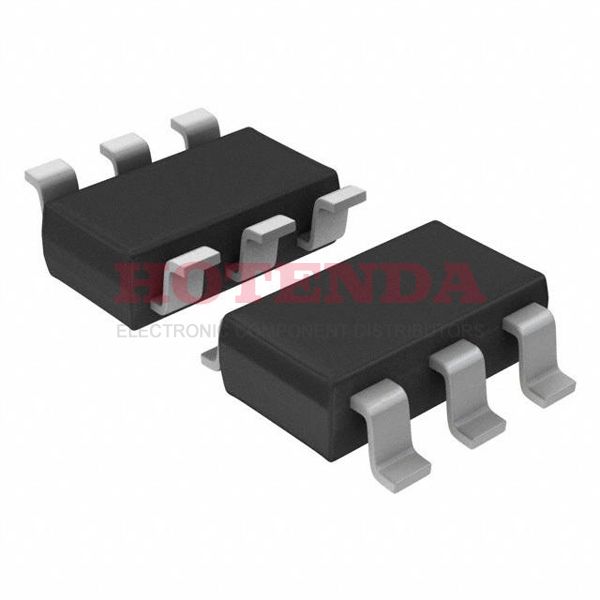

NL27WZ14DTT1G Overview
As the part is packed in SOT-23-6 Thin, TSOT-23-6, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -55°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 27WZ is its series number. Total terminations are 6. Users will benefit significantly from 2 functions in this part. Trying searching with 27WZ14 will yield device variants. The part body receives 6 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 6 pin functions are available upon request. Quiescent parts carry 1μA current. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. In addition to this, it is packed with the industry TAPE AND REEL method. A device with an output current of 32mA is rated. There is a specification for the operating voltage of the chip, 3VV, which is referred to as the supply voltage. Gates with a 2 logic. A feature of it is Schmitt Trigger.
NL27WZ14DTT1G Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 1μA
Output Current: 32mA
2 Gates
NL27WZ14DTT1G Applications
There are a lot of ON Semiconductor
NL27WZ14DTT1G Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
