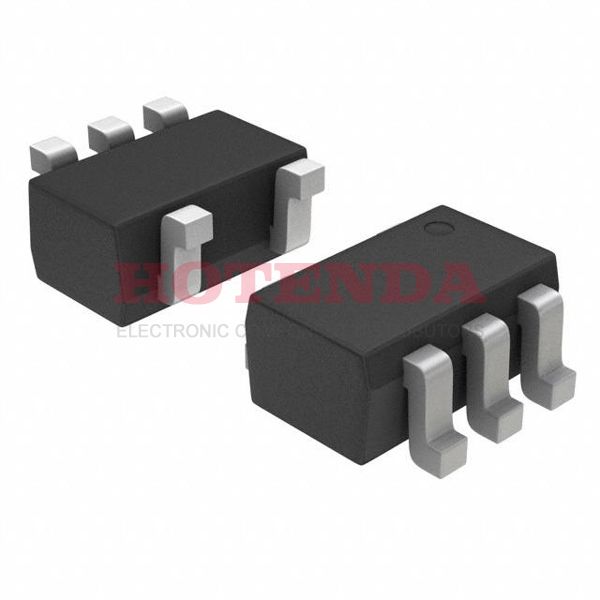

MC74VHC1G02DFT1 Overview
Due to its 5-TSSOP, SC-70-5, SOT-353 packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). NOR Gate logic is the basis of its operation. This part needs a voltage of 2V~5.5V to function properly. An extended operating temperature of -55°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 8mA 8mA. The series 74VHC contains it. A total of 5 terminations have been recorded. It has 1 functions that enhance user experience significantly. In AHC/VHC, this chip plays an important role. Part bodies are injected with 5 pins. It supports inputs of 2. A 1 circuit is present in this device. To supply the device, a voltage of 2V must be applied. It reaches 5.5V when the supply voltage is maximal (Vsup). 1μA is the maximum current in standby mode.
MC74VHC1G02DFT1 Features
NOR Gate Logic Type
Operating Temperature: -55°C~125°C
AHC/VHC Family
MC74VHC1G02DFT1 Applications
There are a lot of Rochester Electronics, LLC
MC74VHC1G02DFT1 Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
