NCP154MX180300TAG Overview

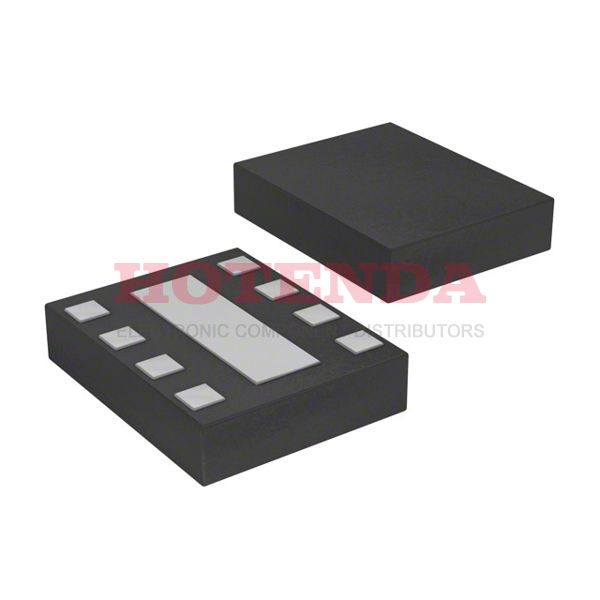

An Tape & Reel (TR) case is included with the delivery. There is a 8-XFDFN Exposed Pad case with the integrated voltage regulator. There are 8 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 2 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~85°C degrees. In this case, the output function that is configured for this regulator IC is Positive. There is an 300mA 300mAmp current output on this voltage regulator IC. In order to ensure prompt, adequate, and prompt performance, this regulator has 2 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 8 pins on the chip. In order to pack the regulator, the method is TAPE AND REEL. It operates in the 100μA Quiescent Current state.
NCP154MX180300TAG Features
335mV dropout voltage
TAPE AND REEL method of packing
NCP154MX180300TAG Applications
There are a lot of ON Semiconductor
NCP154MX180300TAG Linear Voltage Regulators applications.
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
