NCV662SQ15T1G Overview

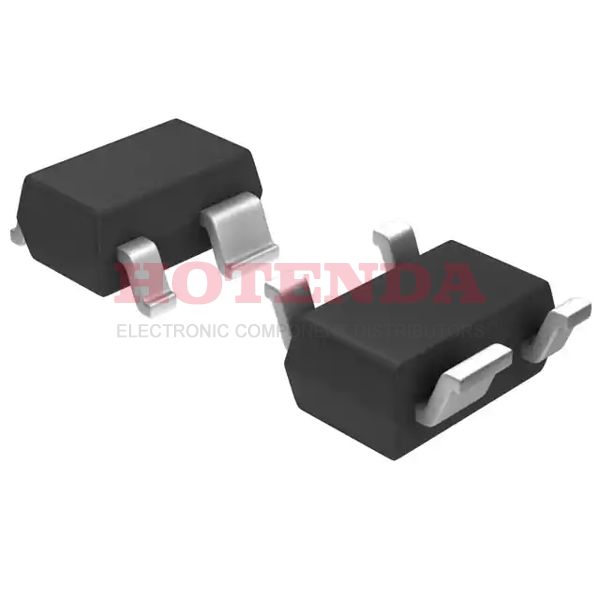

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A SC-82A, SOT-343 case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 4 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 4 pins are on the chip. For your information, this regulator's basic part number is NCV662. There is a way of packing the regulator that is called TAPE AND REEL. To meet operation requirements, the voltage regulator IC has a maximum output current of 100mA. It operates in the 6mA Quiescent Current state. Among the Automotive, AEC-Q100 Series, the IC voltage regulator is one of the most popular models.
NCV662SQ15T1G Features
950mV dropout voltage
TAPE AND REEL method of packing
NCV662SQ15T1G Applications
There are a lot of ON Semiconductor
NCV662SQ15T1G Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
