NCP1398CDR2G Overview

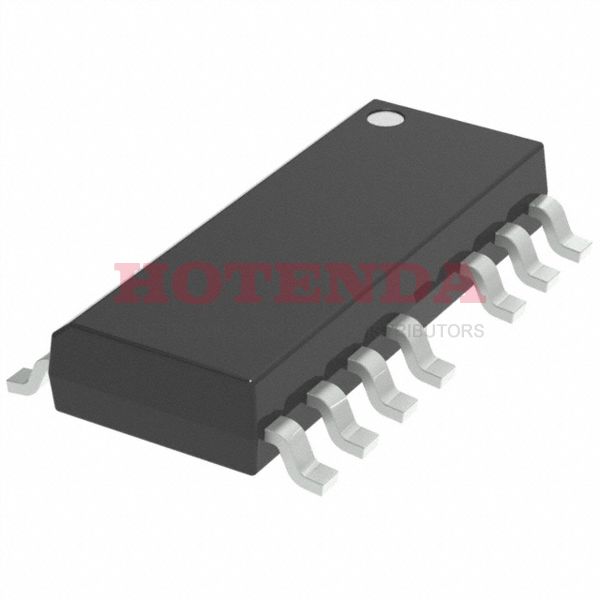

It is embedded in package 16-SOIC (0.154, 3.90mm Width), 15 Leads .The AC/DC power converter type is Tape & Reel (TR) .In this case, the AC/DC converter is mounted in the way of Surface Mount .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.At this point, the switching frequency reaches 50kHz~750kHz .It can be used within the range of 9.5V~20V supply voltage (Vcc/Vdd).There are a total of 15 terminations in it.A ac/dc converter with 15 pins is available.There are a total of 15 pins on the ac-dc converter.AC to DC converter is included in Switching Regulator or Controllers .
NCP1398CDR2G Features
Packaged with 16-SOIC (0.154, 3.90mm Width), 15 Leads
Switching Frequency at 50kHz~750kHz
With 15 pins
NCP1398CDR2G Applications
There are a lot of ON Semiconductor NCP1398CDR2G AC DC Converters applications.
- Low power ac?dc Adapters for Chargers
- LED Driver
- Handheld/Battery-Powered Systems
- AC/DC Adaptors/Chargers for Cordless Phone
- LED lights
- PDAs
- Networking
- Power Adaptors
- Standby Power Supplies
- Adaptors for DSCs
