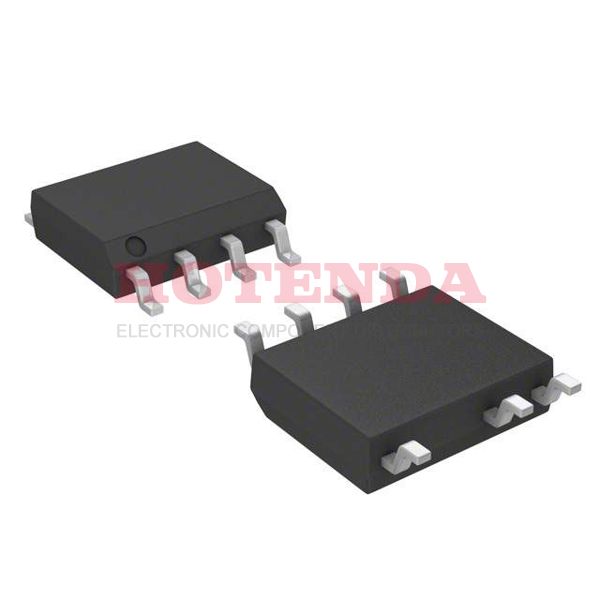

NCP1246BLD100R2G Overview
This ac to dc converter is included in the package 8-SOIC (0.154, 3.90mm Width), 7 Leads .The AC/DC power converter type is Tape & Reel (TR) .There is a AC/DC converter mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~125°C TJ °C.SWITCHING CONTROLLER analog ICs are employed in this AC DC converter.In this AC to DC transformer, the switching frequency is 100kHz .This AC/DC converter is designed for use within the range of 8.9V~28V supply voltage (Vcc/Vdd).There are a total of 7 terminations in it.It are possible to mount thare ac dc converters by Surface Mount .Currently, the output current is set to 800mA .During a 28V -voltage supply, the interface IC conducts.
NCP1246BLD100R2G Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 100kHz
Output Current at 800mA
Operating Supply Voltage at the range of 28V
NCP1246BLD100R2G Applications
There are a lot of ON Semiconductor NCP1246BLD100R2G AC DC Converters applications.
- Battery Chargers
- Industrial controls
- Battery chargers for cordless
- Laptops
- Battery chargers for smart phones
- Automotive Infotainment
- Universal input AC/DC adapters (15W - 45W)
- Networking
- Set -Top Box (STB) Power Supply
- Smartphones
