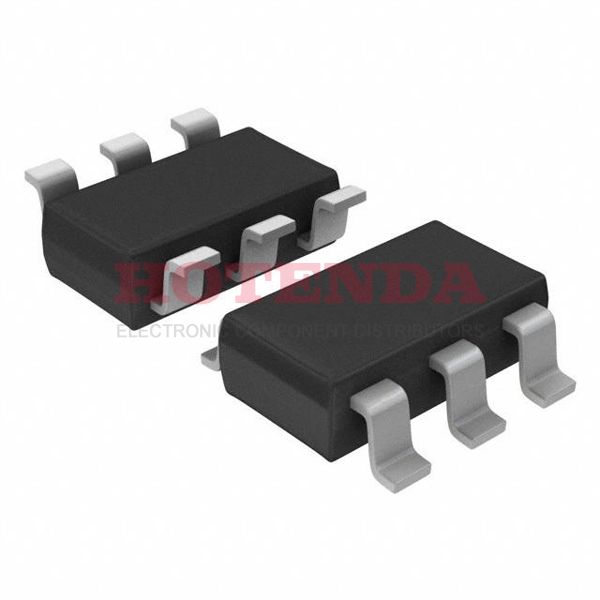

NCP1250ASN65T1G Overview
The ac to dc converter is embedded in SOT-23-6 Thin, TSOT-23-6 package.The AC/DC power converter type is Tape & Reel (TR) .It is mounted in the way of Surface Mount .The ac dc converter should be operated at a temperature of -40°C~125°C TJ °C to deliver its optimal performance.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.Switching frequency reaches 65kHz Hz.This AC/DC converter is designed for use within the range of 8.8V~28V supply voltage (Vcc/Vdd).A total of 6 terminations have been recorded.A ac/dc converter with 6 pins is available.There are 6 pins in the ac-dc converter.Suitable mounting is provided by Surface Mount .If you select the NCP1250 family, you will be able to search similar acdc converters.AC to DC converter is necessary to run 1 outputs.The ac to dc conversions can be found in Switching Regulator or Controllers .In this AC to DC transformer, the output current is set to 500mA .As a result, its output voltage is 12V .On the basis of a unique technique, the input voltage can be ensured to be 28V .
NCP1250ASN65T1G Features
Packaged with SOT-23-6 Thin, TSOT-23-6
Switching Frequency at 65kHz
With 6 pins
Output Current at 500mA
NCP1250ASN65T1G Applications
There are a lot of ON Semiconductor NCP1250ASN65T1G AC DC Converters applications.
- Low power ac?dc Adapters for Chargers
- Dimmers
- Battery chargers for cellular phones
- Battery chargers for cordless
- RCC SMPS
- Power tools
- Portable Apparatus
- Automotive Telematics
- Automotive Clusters
- AC?DC USB chargers for Tablets
