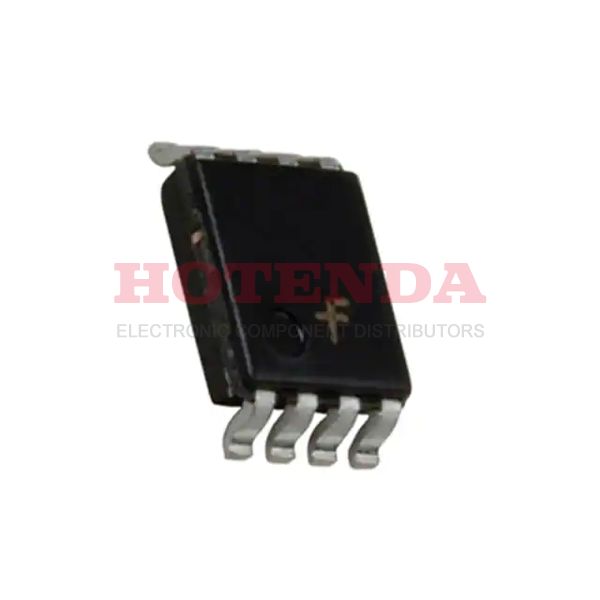

NC7WZ132K8X Overview
Packed in 8-VFSOP (0.091, 2.30mm Width), the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is 32mA 32mA. It comes from the 7WZ series. There are 8 terminations totally. The part has 2 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 7WZ132. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 8 pins functions. In the quiescent state, the part has 1μA current flowing through it. The part bears a load capacitance of 50pF. The supply voltage should not exceed 5.5V. It is packed with the industry TR method. As specified in datasheets, the part requires 3.3V power supplies. The device's output current is rated 32mA. 1 outputs are included in the device. Logical operation through 2 gates. It features Schmitt Trigger.
NC7WZ132K8X Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 1μA
Output Current: 32mA
2 Gates
