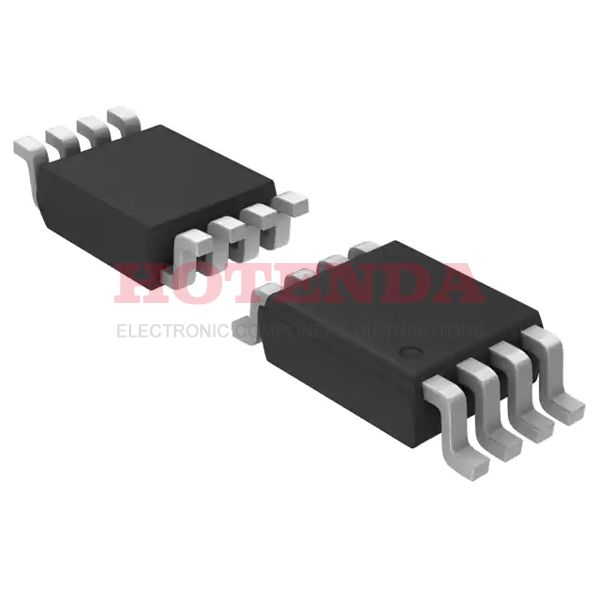

NL37WZ06USG Overview
Shipping overseas is convenient with the part packed in 8-VFSOP (0.091, 2.30mm Width). High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the Inverter logic principle, it works. A voltage of 1.65V~5.5V is required for the part to function properly. Increasing operating temperature to around -55°C~125°C. In Surface Mount, the part is mounted. There is - 32mA output current in the high or low states. The 37WZ series contains it. Total terminations are 8. User experience is significantly enhanced by the part's 3 functions. Try searching with 37WZ06 if you're looking for device variants. The part body is injected with 8 pins. This logic device is widely used in a wide variety of applications because it is Surface Mount mounted. For functions related to 8 pins, please refer to the datasheets. The part has 1μA current flowing through it in the quiescent state. 50pF is the load capacitance of the part. A minimum voltage of 1.65V is required to supply the device. 5.5V is the maximum supply voltage (Vsup). The industry TAPE AND REEL method is included. There is 32mA output current rated for the device. The device has 3 outputs. The total number of elements used for operation is 3. Among its features are Open Drain.
NL37WZ06USG Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 1μA
Output Current: 32mA
NL37WZ06USG Applications
There are a lot of ON Semiconductor
NL37WZ06USG Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
