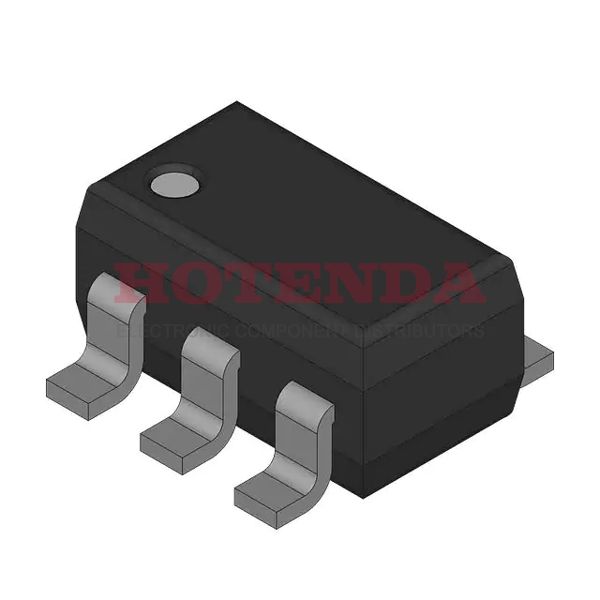

NC7ST02M5 Overview
The part is convenient to ship overseas because it is packed in a SC-74A, SOT-753. The advanced packaging method Tape & Reel (TR) provides high reliability. A NOR Gate logic principle governs its operation. Voltage 4.5V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~85°C. Mounted in Surface Mount. Output current is 2mA 2mA in the high and low states. 7ST is the series it belongs to. The total number of terminations is 5. There are 1 functions that significantly improve the user experience. As part of HST/T, this chip is used. Try searching with 7ST02 to find device variants. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 5 pins are available. Inputs are limited to 2. Quiescent parts have 1μA current flowing through them. The method TAPE AND REEL is packed into it. This part requires 5V power supplies, according to its datasheet. There is a specified operating supply voltage for the chip of 5V volts. 1 gates are used in logical operations.
NC7ST02M5 Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
HST/T Family
Quiescent Current: 1μA
1 Gates
NC7ST02M5 Applications
There are a lot of ON Semiconductor
NC7ST02M5 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
