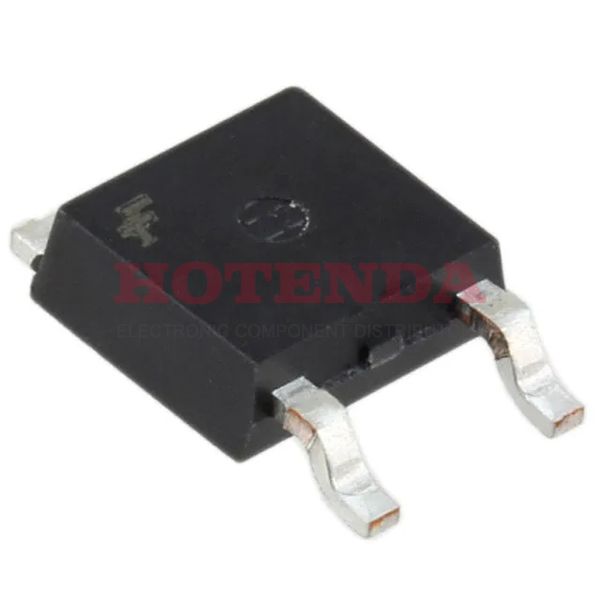

MC7812ECDTX Overview
This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a TO-252-3, DPak (2 Leads + Tab), SC-63 case, the battery regulator IC is protected from damage during shipment. There are 2 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 3. FYI, the basic part number for this IC regulator is MC7812. The way of packing the voltage regulator IC is TAPE AND REEL. It works in 1A output current at mostIt operates in the 8mA Quiescent Current state. Speaking of tolerance, this voltage regulator IC is characterized to have 4% tolerance, which is quite low.
MC7812ECDTX Features
2V dropout voltage
TAPE AND REEL method of packing
4% tolerance
MC7812ECDTX Applications
There are a lot of ON Semiconductor
MC7812ECDTX Linear Voltage Regulators applications.
- Home electric appliance
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
