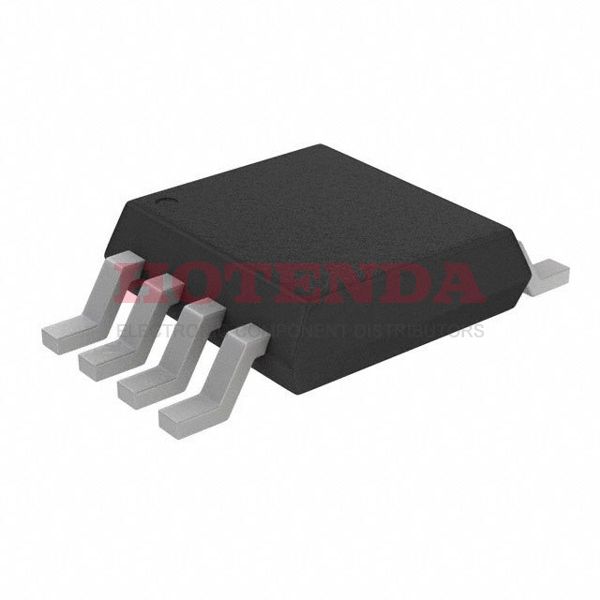

Name: MIC5216BMM
Brand: Microchip Technology
SKU: MIC5216BMM
Availability: InStock

new-10%

MIC5216BMM

Manufacturer part number:MIC5216BMM

Manufacturer:Microchip Technology

Description:Enable Adjustable MIC5216 PMIC - Series 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5216BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Supplier Device Package	8-MSOP
Package	Tube
Base Product Number	MIC5216
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2007
Series	-
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Base Part Number	MIC5216
Current - Supply (Max)	8μA
Voltage - Input (Max)	12V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Voltage - Output (Min/Fixed)	Adjustable
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	3μA
Voltage Dropout (Max)	0.6V @ 500mA
PSRR	75dB (120Hz)
Voltage - Output (Max)	-
RoHS Status	Non-RoHS Compliant

MIC5216BMM Product Details

MIC5216BMM Overview

The package contains a Tube case. In 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) cases, it is packaged. Adjustable is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 500mA at the moment. I just wanted to let you know that this IC voltage regulator has the part number MIC5216 as its basic part number. It belongs to the - Series of regulators.
