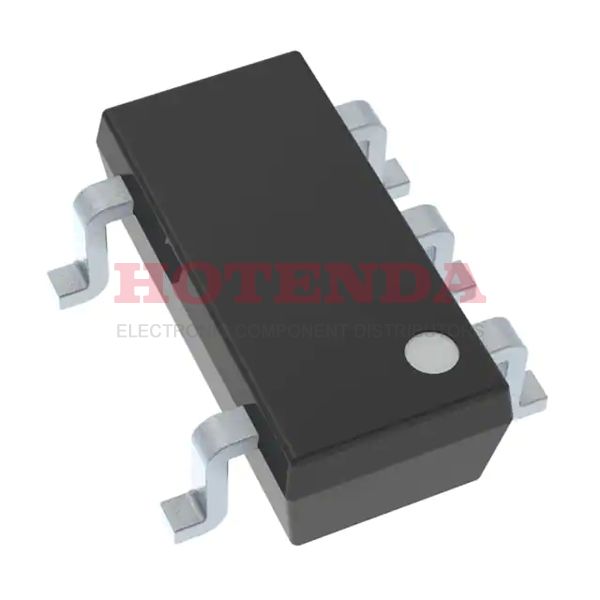

MC74VHC1G135DBVT1G Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NAND Gate. The part must have a voltage of 2V~5.5V in order to function properly. Operating temperature around -55°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is - 8mA. This is part of the 74VHC series. Use 74VHC1G135 to search for device variants. There are 2 inputs on this part. A total of 1 circuits make up this device. In standby mode, the maximum current is 1μA. Schmitt Trigger, Open Drain is its feature.
MC74VHC1G135DBVT1G Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
MC74VHC1G135DBVT1G Applications
There are a lot of ON Semiconductor
MC74VHC1G135DBVT1G Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
